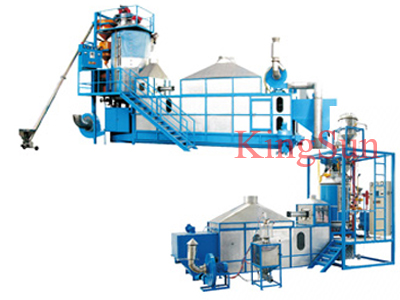

Máy làm xốp SPJ 50, 90, 130, 160

Item

Type

PSJ50

PSJ90

PSJ130

PSJ160

Expansion Chamber

Diameter
Volume
Useable Volume

f500mm
0.14m3
0.1m3

f900mm
0.85m3
0.6m3

f1300mm
2.4m3
1.6m3

f1600mm
5.4m3
4.5m3

Steam

Entry
Consumption
Pressure

DN25
0.5-0.7kg/cycle
0.6-0.8MPa

DN40
2-4kg/cycle
0.6-0.8MPa

DN65
10-12kg/cycle
0.6-0.8MPa

DN100
18-20kg/cycle
0.6-0.8MPa

Compressed Air

Entry
Consumption
Pressure

DN20
0.2-0.3m3/cycle
0.6-0.8MPa

DN25
0.3-0.4m3/cycLe
0.6-0.8MPa

DN40
0.7-0.9 m3/cycle
0.6-0.8MPa

DN40
0.5-0.8 m3/cycle
0.6-0.8MPa

Drainage

Drainage Port
Condensate

DN80
DN20

DN50
DN25

DN100
DN100

DN150
DN25

Throughput

13g/l
18g/l
25g/l
32g/l

85kg/h
120kg/h
175kg/h
220kg/h

13g/l
18g/l
25g/l
31g/l

350kg/h
530kg/h
750kg/h
870kg/h

12g/l
15g/l
20g/l
30g/l

530kg/h
670kg/h
920kg/h
1220kg/h

12g/l
15g/l
18g/l
25g/l

1500kg/h
2000kg/h
2600kg/h
3100kg/h

Second expansion

8g/l
10 g/l

800kg/h
1000kg/h

Material Conveying Line

f150mm

f150mm

f250mm

f250mm

Connected Load

9.5KW

15.25KW

20.1KW

38KW

Density

12-140g/l

12-110g/l

12-30g/l

12-30g/l

Density Tolerance

<=±2%

<=±2%

<=±3%

<=±3

Overall Dimension

(LW*H)

3000*3800*3800(mm)

4500*2000* 4900(mm)

7380*3000* 4500(mm)

11000*2840*6050(mm)

Weight

1500kg

2500kg

4200kg

8000kg

Room Height Required

5000mm

5000mm

5500mm

7000mm
