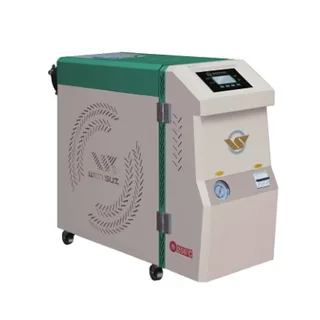

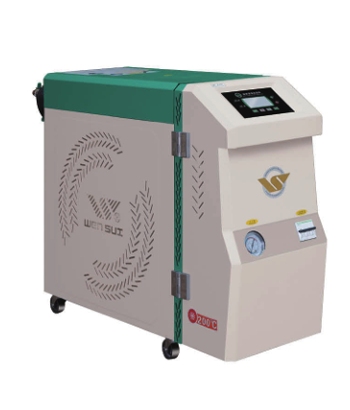

Máy làm nóng khuôn WSTW-12

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

RTC series mould automatic temperature controller is maily used for mould heating and keep constant temperature, as well as the fields with same requirements. This series adopts heat-exchanging principle, uses water or high heat conduction oil as

RTC series mould automatic temperature controller is maily used for mould heating and keep constant temperature, as well as the fields with same requirements. This series adopts heat-exchanging principle, uses water or high heat conduction oil as media, keep the mould in constant temperature during molding, guarantee top quality for molding, the optimized design ensuring the heating temperature up to 200℃.
Computer temperature control, direct-view and easy and simple for operation, PID temperature control with high accuracy and stable temperature controlling, the accuracy is ±1℃ within.
Use horizontal pump, running in smooth and steady, stable flow with long using life.
Cylindrical tube design,pressurization and explosion-proof.
Automatic alarming function,alarming and automaticly stop when the system has the breakdown.
Attractive appearance,easily-dismounted design,convenient for maintenance
Two specifications of water and oil cooling for customers' selection.

Specifications:

Model	Hear-rtansfer medium	Max temp	Pump Power (kw)	Pump Max flux (L/min)	Pump lift (m)	Tank capccity (L)	Heating power (kw)	Medium intet /outlet dimensions	(Kcal/h) Cooling ability	Dimensions (cm)	Net weight (kg)
WSTW-06	Water	95℃	0.37	30	30	5	6	12mmx3	10000	85x25x62	60
WSTW-09			0.75	50	30	5	9	12mmx3	10000	85x25x62	60
WSTW-12			1.5	80	45	5	12	12mmx3	10000	85x25x62	60
WSTW-24			2.2	200	30	10	24	1.5"x1	15000	90x35x90	120
WSTW-36			3.75	380	35	15	36	1.5"x1	15000	110x40x103	130
WSTW-60			3.75	380	35	20	60	1.5"x1	15000	110x40x103	135
WSTW-06-D			0.37x2	35x2	30	5x2	6x2	12mmx6	10000x2	88x50x68	98
WSTO-06-D	Heat-transfer oil	200℃	0.37x2	35x2	30	5x2	6x2	12mmx6	10000x2	88x50x68	102
WSTO-06-R		160℃	0.55	33	40	12	6	3/8"x3	4000	86x31x74	80
WSTO-06		140℃ 200℃	0.37	35	30	5	6	3/8"x3	2000	85x25x62	62
WSTO-09			0.75	50	30	5	9	3/8"x3	2000	85x25x62	65
WSTO-12			1.5	80	45	5	12	3/8"x3	2000	85x25x62	75
WSTO-24			2.2	200	30	25	24	1.5"x1	8000	90x35x90	120
WSTO-36			3.75	380	35	40	36	1.5"x1	8000	110x40x103	130
WSTO-60			3.75	380	35	40	54	1.5"x1	10000	110x40x103	135
