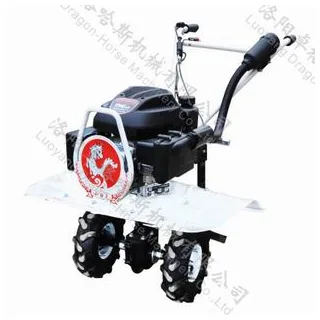

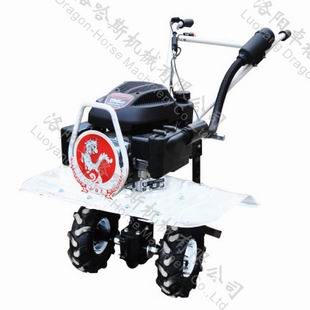

Máy làm đất VG-L3

Main Function:Rotary tilling,weeding
Main Application Range:Orchard,Tea field,Mulberry field,Tabacco field,Green house,etc

Features:
1)A vertical output axle, all gear system.
2)Small volume,light weight,compact structure.
3)Automatic clutch, stepless speed change,user-friendly control.
4)The dust shield is fairshaped design,adopt a material of PP and it’s dismountable, the operator is much more safer.
5)Matched with a hanging tool,the attachments can hang on that.
6)Matched with multiple kinds of attachments to realize a variety of functions.

 ♦Loncin power 1P70,Tri-filtering,Long life time of engine.

♦A simple engine shield.

 Main Technical Parameter:



Engine Type		single cylinder,vertical shaft,4 stroke,air cooled		Max Power Output HP(kw)/rpm		7(4.1)/3600
Engine Model		1P70FA		Fuel Consumption (L/acre)		1.1~1.4
Transmission		All gear driving		Efficiency(acre /h)		1.1~1.3
Gear Shifting		Stepless speed		Fuel Tank capacity (L)		2.5
Starting		Recoil start		Displacement (cc)		196
Main Function		rotary tilling,weeding		Tilling Depth(mm)		100~180
Net weight (KG)		50		Tilling Width(mm)		350~870
Package size(mm)		580x480x810(L*W*H)		Overall dimension(mm)		1000*400*740
