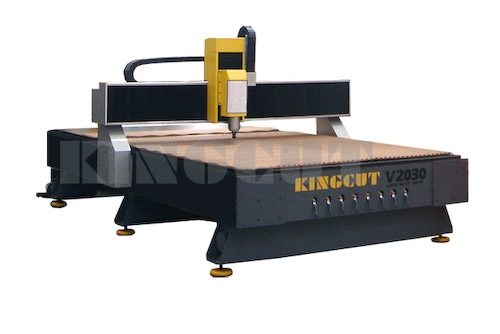

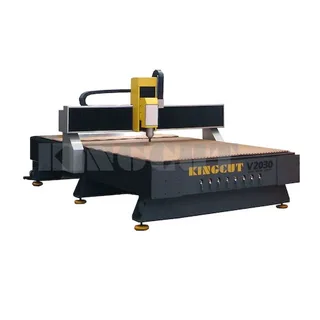

Máy khắc CNC V2030

 Model

 V2030

 X.Y axis motion

 2100mm (X)x 3000mm (Y)

 Z axis motion

 170mm

 Table size(X/Y)

 3100mm (X)x 3540mm (Y)

 Drive System

 X, Y axis : Rack and Pinion / Z axis : Ball Screw

 Max.Moving Speed

 15M/min

 Max.Engraving Speed

 12M/min

 Max.Feeding Height

 180mm

 Repeatability

 0.05mm

 Driving System

 AC Servo motor

 Resolution

 0.00727mm

 Controller

 VDS III (DSP 160MHz)

 File Type

 HP-GL, G-Code

 Computer OS

 Windows98/2000/XP

 Power Supply

 3 Phase 380V/50Hz

 Spindle

 3500W Air cooling

 Spindle rotary speed

 0 to 18000 rpm

 External Dimension

 / mm (W)x / mm (D)x / mm (H)

 Weight

 / kgs

 Operating Temperature and humidity

 5 to 35 °C / 35 to 70% (non-condensing
