Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Model KS1212 X.Y axis motion 1230mm (X)x 1200mm (Y) Z axis motion 90mm Table size(X/Y) 1300mm (X)x 1700mm (Y) Drive System High-precision ball screw and square rails for all 3 axis Max.Moving Speed15M/min Max.Engraving Speed 15M/min Max.Feeding

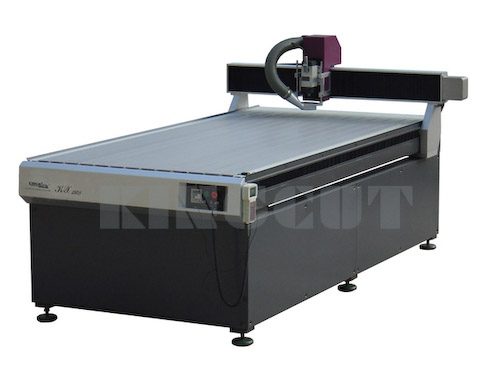

Model	KS1212
X.Y axis motion	1230mm (X)x 1200mm (Y)
Z axis motion	90mm
Table size(X/Y)	1300mm (X)x 1700mm (Y)
Drive System	High-precision ball screw and square rails for all 3 axis
Max.Moving Speed	15M/min
Max.Engraving Speed	15M/min
Max.Feeding Height	125mm
Repeatability	0.05mm
Driving System	AC Servo motor
Resolution	0.005mm
Controller	VDS III (DSP 100MHz)
File Type	HP-GL, G-Code
Computer OS	Windows98/2000/XP
Power Supply	AC220C / AC110V
Spindle	1500W self cooling
Spindle rotary speed	0 to 24000 rpm
External Dimension	2070mm (W)x 1610mm (D)x 1570mm (H)
Weight	450kgs
Operating Temperature and humidity	5 to 35 °C / 35 to 70% (non-condensing)
