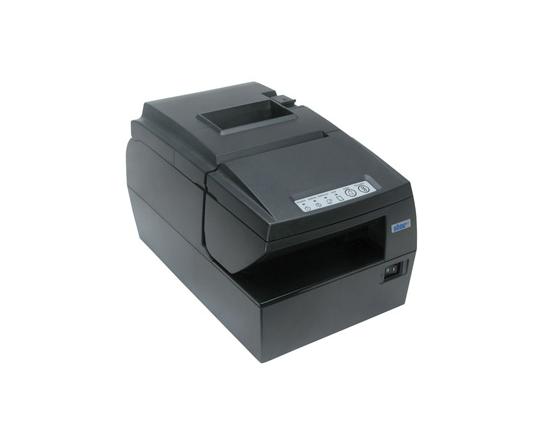

Máy in Nhiệt STAR HSP7000

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Models HSP7743 HSP7643 HSP7543 Printer Method Direct Linear Thermal Print Speed 250 mm per sec. Model Available Auto Cutter Only Print Resolution 203 x 203 dpi / 203 x 406 dpi Selectable 2 Colour Print Capability Red/Black Blue/Black (Special

Models		HSP7743 HSP7643 HSP7543
Printer Method		Direct Linear Thermal
Print Speed		250 mm per sec.
Model Available		Auto Cutter Only
Print Resolution		203 x 203 dpi / 203 x 406 dpi Selectable
2 Colour Print Capability		Red/Black Blue/Black (Special paper required)
Bar Codes		Supported
Paper Specifications: Width Thickness/Weight Roll Diameter Easy-Loaded Paper Out Sensor Paper Low Sensor Print Width		80mm standard 76 mm 58mm adjustable 0.065 ~ 0.085mm Up to 83mm "Drop-In & Print" Standard Standard 80 mm paper = 72 mm; 76 mm paper = 68 mm; 58 mm paper = 50.8 mm
Auto Cutter		Guillotine (Partial Cut Only)
Cover Open Sensor		Yes
Reliability MCBF		60 Million Lines
Auto Cutter		1.5 Million Cuts
Impact Slip/Validation Station
Print Method		9-Pin Bi-Directional Logic Seeking
Reliability		37 Million Lines
Number of Columns		60 / 45
Print Area		85.4 mm maximum
Paper Loading		Original + 3 (Up to 4-Ply Paper Supported)
Paper Size Width Length		Up to 230 mm 75 – 297 mm
Paper Thickness 1 Ply 4 Ply		0.09 - 0.20 mm 0.09 - 0.31 mm
Ribbon		RC7000B
Check Printing		Yes
Validation		Yes
MICR		Yes (HSP7743/HSP7643 only)
MICR Character Sets		E13B / CMC-7 (HSP7743/HSP7643 only)
General Specifications
Printer Case Color		Putty or Gray
Dimensions/Weight		186(W) x 296(D) x 177(H) mm/4.6 kg
Emulation		Star Mode, ESC/POS™
Drivers Available		OPOS™ , JAVA POS™ , Windows™ 2000/XP/Vista™ , WinCE, WEPOS, Windows 2003 Server, Linux CUPS Support™ , MAC OSX™
WHQL		Certified
Swappable Interfaces		Yes
Connectivity		Serial, Parallel, USB, Powered USB, or Ethernet
Power Supply		External; Requires PS60A External Power Supply
Peripheral Drive Circuit		2 circuits
Power		24V DC
Safety Standards		UL, C-UL, TÜV, FCC Class A, CE, CB GOST, C-tick, AS Standard, VCCI Class A, EN55022
Included with Printer		Installation CD with Drivers and Manuals, Set Up Sheets, Start Up Thermal Paper Roll, Ribbon Cartridge, Paper Guide, Power Switch Cover, Ferrite Core
Options		External Power Supply (PS60A) Swappable Interfaces No MICR Version MICR Top Position
