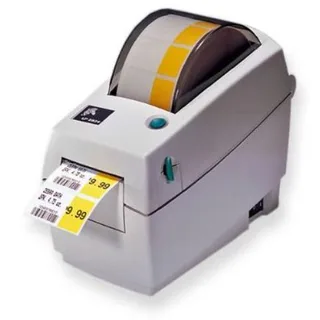

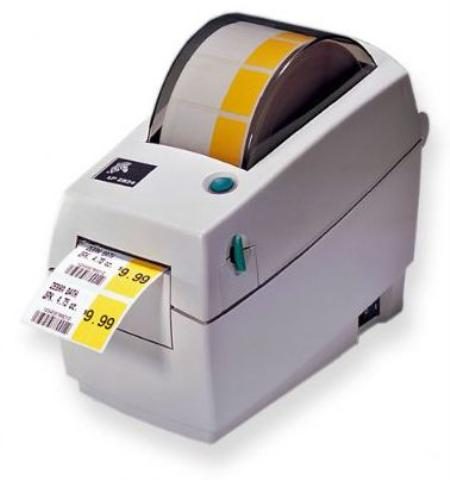

Máy In Mã Vạch Zebra LP2824

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Printer Specifications Resolution203 dpi (8 dots/mm)Memory Standard: 128 KB SRAM; 512 KB FlashOptional: 256 KB SRAM; 1 MB Flash Print width2.2" (56 mm) maximumPrint length 11" (279 mm) with standard memory22" (584 mm) with expanded memory Print

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

Standard: 128 KB SRAM; 512 KB Flash
Optional: 256 KB SRAM; 1 MB Flash

Print width: 2.2" (56 mm) maximum

Print length

11" (279 mm) with standard memory
22" (584 mm) with expanded memory

Print speed: 4" (102 mm)/sec

Media sensors: Transmissive
Reflective

Media Characteristics

Maximum label and liner width: 2.36" (60 mm)
1.44" (37 mm) with Media Adapter Guides

Minimum label and liner width: 1.00" (25.4 mm)
0.585" (15 mm) w/ Media Adapter Guides

Maximum label and liner length

11" (279 mm) (with standard memory)
Line mode: Unlimited

Maximum label and liner length (optional): 22" (558 mm)

Maximum roll diameter: 5" (127 mm)

Core diameter: 1" (25.4 mm) or 1.5" (38 mm)

Media thickness: 0.003" (0.08 mm) to 0.007" (0.18 mm)

Media types: (black-mark optional), black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, linerless, notch, notch sensing, notched, optional linerless platen, perforated, receipt, roll-fed, tag, tag stock

Operating Characteristics

Operating temperature: DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal

Storage temperatures: -40° F (-40° C) to 140° F (60° C)

Operating humidity: 10-90% non-condensing R.H.

Storage humidity: 5-95% non-condensing R.H.

Electrical

Autoranging external power supply with C7 type connector
Output: 20 VDC, 2.5A
Input: 100-240 VAC, 50-60 Hz

Agency approvals

UL
FCC
C-TICK
CCC/SRRC
NOM
CSA
CE
VCCI/PSE
GOST-R

Physical Characteristics

Width: 4.4" (111 mm)

Height: 6.8" (171 mm)

Depth: 8.5" (216 mm)

Weight: 2.7 lbs (1.2 kg)

Shipping weight: 5.3 lbs (2.4 kg)

Related Products

Options

Cutter
Real time clock
Dispenser with label taken sensor
Expanded memory (up to 1 MB flash; 256 KB SRAM)
Asian Font Set

Communication and Interface Capabilities

Serial RS-232 (DB9) and USB V1.1 (2 ports)
Parallel (Centronics) (1 port)
Optional external ZebraNet 10/100 Ethernet PrintServer

Programming Languages

Core programming languages: EPL2

Bar Codes/Symbologies

Linear: Code 39
Code 128 with subsets A/B/C
UCC/EAN-128
Code 93
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
UPC-A and UPC-E with 2 or 5 digit extensions
EAN-13
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
Postnet
Japanese Postnet
Plessey
German Post Code
RSS-14
MSI-3

2-dimensional: MaxiCode
PDF417
MacroPDF417
QR Code (requires Asian version printer)
Data Matrix

Fonts and Graphics

Standard Fonts: 5 bitmapped, expandable 8x
Soft font storage in Flash memory
DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
