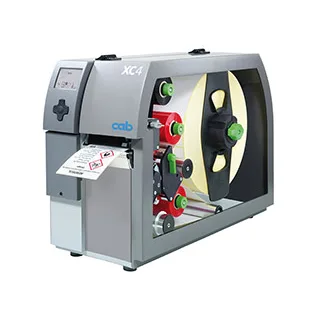

Máy in mã vạch Cab XC4 - máy in chuyên dụng in 2 màu

XC4, XC6 - máy in nhãn chuyên dụng in hai màu

• Hai cuộn mực truyền nhiệt được sắp xếp để in hai màu.
• Mực in được bám lần lượt theo thứ tự.
• Dòng XC đáp ứng được các điều kiện để phân loại và in tem tồn kho teho GHS.
• Cho cuộn mực in lớn với đường kính lên tới 300mm
• Hai đơn vị lưu mực, bảng điều khiển thuận tiện được chứng minh bởi dòng A+ Series.

Label printer	XC4	XC6
Print head
Print method: Thermal transfer
Print method: Thermal direct	-	-
Print resolution dpi	300	300
Print speed up to mm / s	125	125
Print width mm	105,6	162,6
Material
Labels, continuous rolls or fanfolded: Paper, cardboard, textile, plastics such as PET, PE, PP, PI, PVC, PU, acrylate
Material thickness mm / weight g / m2	0,05 – 0,2 / 60 – 180
Width: labels1)  mm	20 – 116	46– 176
Height1)  without back-feed from mm	20	20
Height 1) up to mm	2000	1500
Media roll: Outside diameter up to mm	300
Media roll: Core diameter mm	76
Media roll: Winding	Outside or inside
Ribbon
Ink	Outside or inside
Roll diameter up to mm	72
Core diameter mm	25
Ribbon length variable up to m	360
Width2)  up to mm	114	165
Dimensions printer
Height mm	395	395
Depth mm	554	554
Width mm	248	358
Weight kg	22	24
Label sensor
Gap sensor: For leading edge or punch marks and end of material
Reflective sensor from the bottom / from the top
Distance to locating edge mm	5-53
Electronics
Processor 32 Bit clock rate MHz	266
RAM MB	64
Memory IFFS MB Flash	8
Slot for CompactFlash Type I memory card
Slot for Wireless LAN card
Battery buffer for real-time clock, printout of time and date, data storage on shut-down
Warning signal: acoustic signal in case of error
Interfaces
Centronics bi-directional acc. to IEEE 1284	-
RS232 C 1.200 up to 230.400 Baud / 8 Bit	-
USB 2.0 High Speed Slave for PC connection
Ethernet 10 / 100 Base T, LPD, RawIP-Printing, ftp-Printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP
RS422, RS485 1.200 up to 230.400 Baud / 8 Bit	-
Peripheral connection
WLAN Card 802.11b/g WEP/WPA PSK (TKIP)
2 x USB master for external operation panel, keyboard, scanner, service key, USB flash drive
Operating data
Power supply	100 - 240 V ~ 50 / 60 Hz, PFC
Power consumption	100 - 300 W depending on type of printer
Temperature / humidity: Operation	+ 5 - 40°C / 10 - 85% not condensing
Temperature / humidity: Stock	+ 0 - 60°C / 20 - 85% not condensing
Temperature / humidity: Transport	– 25 - 60°C / 20 - 85% not condensing
Approvals	CE, FCC class A, CB, CCC, UL
