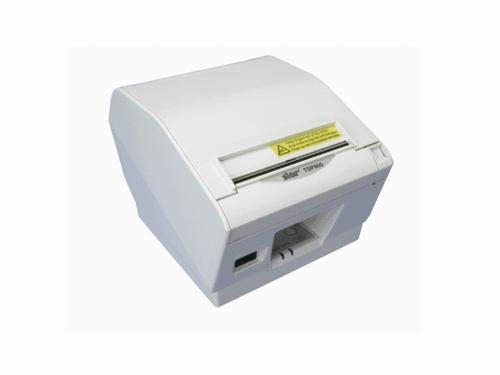

Máy in hóa đơn STAR TSP800

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

SeriesTSP800 II seriesModel NameTSP847 II D-24TSP847 II C-24TSP847 II U-24TSP847 II -24Printer Case Colour Star White / Charcoal Grey (*1)Installation Horizontal use / Vertical use (with Optional Vertical Mount Kit)Printer Method Direct Thermal Line

Series		TSP800 II series
Model Name		TSP847 II D-24	TSP847 II C-24	TSP847 II U-24	TSP847 II -24
Printer Case Colour		Star White / Charcoal Grey (*1)
Installation		Horizontal use / Vertical use (with Optional Vertical Mount Kit)
Printer Method		Direct Thermal Line Printing
Character Speciﬁcations	Print Configuration	Alphanumeric Characters: 12 x 24 dots, IBM Block: 12 x 32 dots, Chinese Characters 12 x 24 dots, 24 x 24 dots
	No. of Columns	Maximum 69 columns (12 x 24 fonts) / 34 column (24 x 24 fonts)
	Character Size	ANK : 12 x 24 fonts 1.5 x 3.0 mm (W x H), 12 x 32 fonts 1.5 x 4.0 mm (W x H) Chinese Characters : 12 x 24 fonts 1.5 x 3.0 mm (W x H), 24 x 24 fonts 3.0 x 3.0 mm (W x H)
	Character Type	Alphanumeric Characters, Extended Graphics, International Characters, JIS First Standard Chinese Characters, JIS Second Standard Chinese Characters
	Barcodes	UPC-A/E, JAN/EAN-8/13, ITF CODE39, CODE93, CODE128, CODABAR(NW-7),PDF417 and QR
	Print Resolution	8 dots per mm (203dpi)
Emulation		Star Mode, Star Page Mode, ESC/POS
Interfaces		Serial	Parallel	USB	Optional
		RS-232C	IEEE 1284	USB(2.0)	-
Data Buffer		approx. 8K byte (Ethernet model: approx. 1M byte)
Print Speed		up to 180 mm/second
Paper Specifications	Media Types	Thermal Paper Roll, Thermal Label Roll
	Size	111.5mm±0.5mm (default)
	Roll Diameter	Max. 100 mm
	Thickness	0.065 - 0.150 mm (58 mm paper: 0.065 - 0.085 mm)
Auto-Cutter	Cutting Method	Guillotine
	Cutting Modes	Full cut / Partial cut
	Life	up to 2 million cuts (with recommended paper)
Power Supply Voltage		DC24V±10%
Current Consumption (During ASCII Continuous Printing)		Approx. 1.9A (DC24V)
Peripheral Drive Circuit		2 circuits (24V max. 1A), 1 compulsion input
Reliability (MCBF)		37 million lines
Dimensions		180×213×148mm (W×D×H)
Weight		1.9 kg (without paper roll)
EMI Standards		VCCI: Class A, FCC: Class A, EN55022: Class B
AC adapter (Option)		PS60A-24B
Options		WallMountKit(WB-T800), Vertical Mount Kit (VS-T800), Interface Boards (Seeoptionfor details.)
