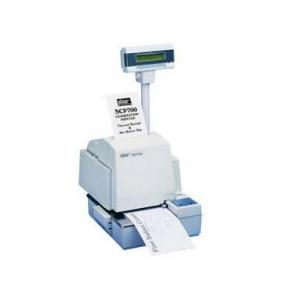

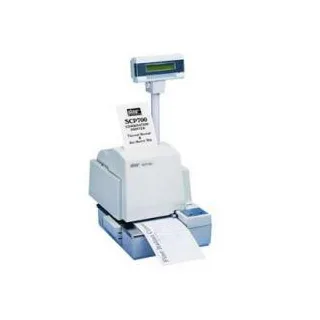

Máy in hóa đơn siêu thị Star SCP700

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

SCP700 SCP700 Printer Standard Interface RS232C (D-sub 9 pin) Support Interfaces Customer Display Dual Cash Drawer Driver Optional Additional Interface RS232C (D-Sub 25 pin) or Centronics Parallel input. Power Requirement 24V DC / 2A, Connector Type

SCP700
SCP700 Printer
Standard Interface	RS232C (D-sub 9 pin)
Support Interfaces	Customer Display Dual Cash Drawer Driver
Optional Additional Interface	RS232C (D-Sub 25 pin) or Centronics Parallel input.
Power Requirement	24V DC / 2A, Connector Type TCS7960 53-2010 (HOSIDEN)
Agency Approval	UL C-UL FCC Class A TÜV CE
Dimensions and weight	180mm (W) x 270mm (D) x 200mm (H), 3.5Kg
Operating environment	5°C to 35°C 25% to 85% RH (w/o) condensation
Slip Printer
Printer Method	9-pin serial impact dot matrix with true descenders
Print Speed	Up to 3.1 lines per second with bi-directional cheque mode
Emulation	Star Mode ESC/POS™ (EPSON TM-U295)
Interface	Parallel Serial RS232C
Paper Copy Capability Paper Width / Length Margin Top / Bottom Paper Feed Speed Forward / Reverse	Orignal + two copies 80 / 80mm (minimum) 5 / 14mm 3.5 / 4.5 inches per second or 21 / 27 lines per second
Number of Columns	42 (7 x 9 font)
Print Width	63mm
Peripheral Driver	Two drivers with compulsion switch input
Buffer Star Mode ESC/POS™ Mode	2048 Byte 512 Byte or 35 Byte
Reliability	9 million lines Calculated Real Time MCBF / 2.5 million lines (Triditional)
Head Life	70 million characters
Power Supply	Option 100 ~ 240V AC / 24V DC
Dimensions	180 (W) x 190 (D) x 138 (H) mm
Weight	2.1Kg (approx.)
Ribbons	Black RC200B, 1.2 million characters
Drivers Available	OPOS™ , Winodws™ Line mode with control font support
Thermal Receipt Printer
Print method	Direct line thermal
Print Head	Linear Thermal head
Print Resolution	8 (H) x 8 (V) dots/mm (203dpi)
Print Speed	16.7 lines per sec (50mm/sec)
Number of columns	48 (12 x 12 Font), Font A 64 (9 x 24 font) (EPSON TM-T85 mode only), Font B
Printable Width	72mm
Number of Dots / Line	576 dots
Font, Character Size	12 X 24 / 8 X 24
Paper width	80mm
Paper Diameter	85mm
Paper Thickness	0.06 to 0.85 mm
Core Diameter	Inner 12mm ± 1mm Outer 17mm ± 1mm
Paper Feed Method	Stepping Motor
Paper Feed Speed	50mm/sec
Sensor	Paper out, Near END (3 Adjustable positions)
Autocutter type	Full or partial cut
Reliability	10 Million Lines 38 Million Lines Calculated teal time MCBF
Print head life	50KM
Autocutter MCBF	300,000 cuts
Customer Display SCD-202 (optional)
Type	Back lit LCD
Number of columns	20 Coutmns x 2 lines
Interface Card (optional)
IFBD-D IFBD-C	RS232C (D-sub 25 pin) Bi-directional IEEE1284 compatible (ampenol type 36 pin connector)
