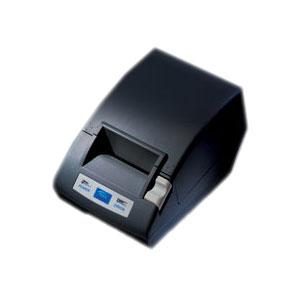

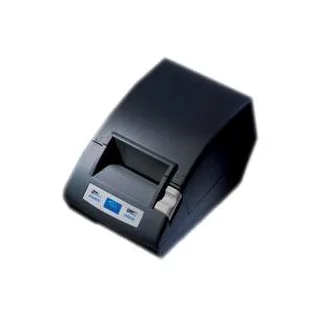

Máy in hóa đơn nhiệt Citizen CT-S280

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Model CT-S280 Printing method Line thermal dot printing Print width 48mm (384 dots/line) Resolution 8 x 8 dots/mm (203 dpi x 203 dpi) Printing speed Max. 80mm/sec Number of print columns Font A: 32 columns (12 x 24 dots) Font B: 42 columns (9 x 24

Model	CT-S280
Printing method	Line thermal dot printing
Print width	48mm (384 dots/line)
Resolution	8 x 8 dots/mm (203 dpi x 203 dpi)
Printing speed	Max. 80mm/sec
Number of print columns	Font A: 32 columns (12 x 24 dots) Font B: 42 columns (9 x 24 dots) Font C: 48 columns (8 x 16 dots)
Character size (W × H)	Font A: 1.50 × 3.00 mm Font B: 1.13 × 3.00 mm Font C: 1.00 × 2.00 mm
Character type	Alphanumeric, International, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai Code 18
User memory	256 K bytes
Barcode type	UPC-A/E, JAN-13/8 columns, ITF, CODE39, CODE128, CODEBAR, CODE93
Line spacing	4.23mm (1/6 inch), selectable with a command (min 1/203 inch)
Paper roll	Thermal label paper, 58 xF83mm (max.), 0.150mm thickness (max.)
Interface	Serial (RS-232C), Parallel (IEEE 1284) or USB
Buffer size	4K bytes/45 bytes
Power consumption	DC8.5V
Power source	AC adapter (28AD), Input: AC100-240V, output: DC8.5V
Weight (approx.)	430 g
Outer dimensions (W × D × H)	106 × 170 × 116.5 mm
Operating temperature and humidity	5 to 40 °C, 10 to 85 % RH (no condensation)
Storage temperature and humidity	-20 to 60 °C, 10 to 90 % RH (no condensation)
Reliability	Thermal head: 100,000,000 pulses or 50 km
Safety standards	UL, C-UL, FCC class A, TUV-GS, CE marking
