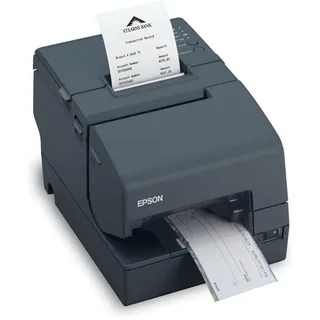

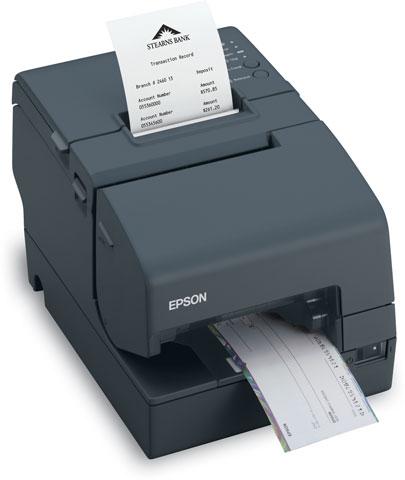

Máy in hóa đơn Epson TM H6000IV

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

MODEL NUMBERTM-H6000IVReceiptSlipEndorsementPrint Station Thermal line printing 9-pin serial impact dot matrix 9-pin serial impact dot matrix Print Speed Up to 300mm/sec (94 lps, {1/8"} conversion) Up to 5.7 lps (40 columns, 17.8 cpi) Up to 4.0 lps

MODEL NUMBER	TM-H6000IV
	Receipt	Slip	Endorsement
Print Station	Thermal line printing	9-pin serial impact dot matrix	9-pin serial impact dot matrix
Print Speed	Up to 300mm/sec (94 lps, {1/8"} conversion)	Up to 5.7 lps (40 columns, 17.8 cpi)	Up to 4.0 lps
Print Font	9 x 17 / 12 x 24	5 x 9 / 7 x 9	5 x 7
Column Capacity	56 / 42 columns	60 / 45 columns	40 columns
Character Size (W x H)	0.99mm x 2.4mm 1.41mm x 3.39mm	1.56mm x 3.1mm 1.24mm x 3.1mm	1.1mm x 2.42mm NA
Barcode	One- and two-dimensional	NA	NA
Paper Dimensions	79.5mm ± 0.5mm x diameter 83.0mm	68mm to 230mm x 68mm to 297mm (W x L)	NA
Paper Thickness	0.06mm to 0.09mm	0.09mm to 0.47mm	0.09mm to 0.2mm
Copy Capacity	NA	One original & 3 copies	One original & 2 copies
Inked Ribbon	NA	ERC-32B (Black)	ERC-43B (Black)
Ribbon Life	NA	4,000,000 characters	3,000,000 characters
Power Consumption	Approx. 1.8 A (mean)	1.7 A	Approx. 1.7 A (mean)
Reliability
MTBF	360,000 hours	180,000 hours	180,000 hours
MCBF	96,000,000 lines	29,000,000 lines	29,000,000 lines
Device
Character Set	95 Alphanumeric, 37 International
Interfaces	Built-in USB, interface options including serial, parallel and ethernet
Data Buffer	45 bytes or 4 KB (up to 384 KB for 128 x 11 graphic fi les)
Autocutter	Scissors type with partial cut
Supply Voltage	24 VDC ±7%
D.K.D. Function	2 drivers
Sensors	Cover Open, Top of Form, Bottom of Form, Slip Eject, Roll Paper Near End, Roll Paper End
Factory Options	MICR Device, Endorsement Printer (E/P), Validation Printing Device, 58mm Paper Guide (PG-58II), Power Supply Unit (PS-180)
Overall Dimensions (W x D x H)	186mm x 278mm x 181mm (7.32" x 10.95" x 7.13")
Weight	Approx. 9.7lbs / 4.4kg
Colour	Epson Dark Grey, Epson Cool White
Environmental Standards	WEEE, RoHS Compliant
OS Support	Microsoft® Windows® 2008 / 2000 / XP / Vista / 7 / 8, WEPOS, POSReady
Control Board
EMC Standards	VCCI Class A, FCC Class A, CE Marking, AS/NZS CISPR22 Class B
Safety Standards	UL / CSA / TUV (EN60950) / GOST-R (IEC60950. CISPR22)
Dimensions and Weight
