Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Model MSO5022 Display 7.8" STN LCD Bandwidth 25 MHz Real-time sampling rate 100MS/s Rise time ≤17.5ns Channels 2+External Time base range 5ns/div -5s/div Vertical sensitivity 5mV/div -5V/div Trigger modes Auto、Normal、Single、Edge、Video、Alternate Max

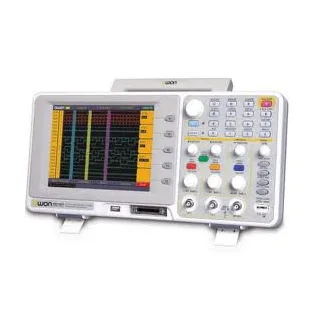

Model	MSO5022
Display	7.8" STN LCD
Bandwidth	25 MHz
Real-time sampling rate	100MS/s
Rise time	≤17.5ns
Channels	2+External
Time base range	5ns/div -5s/div
Vertical sensitivity	5mV/div -5V/div
Trigger modes	Auto、Normal、Single、Edge、Video、Alternate
Max Input Voltage	300V CAT II
Displacement	±10div ±50V(500mV―5V) ±2V(5mV―200mV)
Input Coupling	AC、DC
Input Impedance	1MΩ±2% in parallel with 20pF±5 pF
Time Base Accuracy	100ppm
Power
Power supply	100-240 V AC，50Hz-60 Hz，CAT II
Mechanical specifications
Size	370mm × 175mm × 135mm
Weight	1kg
Logic Analyzer
Max sampling rate	100MHz
Input Channel	16 channels
Max Storage	4M /Channel
Measurement bandwidth	33MHz
Input impedance	1M ±2%
Voltage	0~4V
Input Signal
Range	0~5V
Trigger position setting	Pre-trigger, mid-trigger, re-trigger
Trigger Mode	Bus trigger, state trigger, data alignment trigger, data width trigger
Data search	Supported
Data System	binary, decimal, hex
