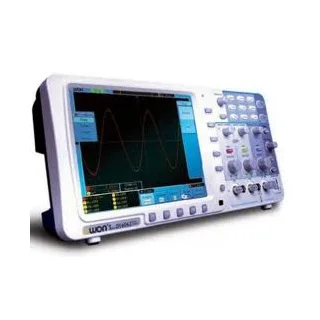

Máy hiện sóng số OWON SDS8102

Model Name     SDS8102
Bandwidth     100MHz
Sample Rate (Real time)     2GSa/s
Horizontal Scale     2ns/div~100s/div
 step by 1~2~5
Rise Time (at input, typical)     ≤3.5ns
Display     8 inch color display with TFT panel
 (800x600 pixels)
Channels     Dual
Input Impedance     1MΩ±2%, in parallel with 15pF±5pF
Record length     Max. 10 M points on each channel
Interpolation     (sin x)/x
Probe attenuation factor     1X, 10X, 100X, 1000X
Input coupling     DC, AC, GND
DC accuracy (average)     Average >16:±(5% reading + 0.05 div) for ΔV
Vertical sensitivity     2mV/div~10V/div (at input)
Vertical resolution (A/D)     8 bit (2 channels simultaneously)
Max. input voltage     400V (PK-PK)
 (DC +AC PK-PK)
Trigger type     Edge, Pulse, Slope, Video, Alternate
Trigger mode     Auto, Normal, Single
Trigger level     ±6 divisions from screen center
Acquisition modes     Sample, Peak Detect and Average
DC gain accuracy     ±3%
Automatic measurement     Vpp, Vavg, RMS, Frequency, Period,
 Vmax, Vmin, Vtop, Vbase, Width,
 Overshoot, Preshoot, Risetime, Falltime,
 +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B
Waveform math     +, -, x, ÷, FFT
Waveform storage     15 waveforms
Lissajou's
figure    Bandwidth     100MHz
    Phase
difference     ±3 degrees
Communication Interface     USB, and USB Flash Disk Storage
Power supply     100V-240V AC, 50/60Hz
Optional battery    4 hours operation
Hãng sản xuất : Owon - Trung Quốc
