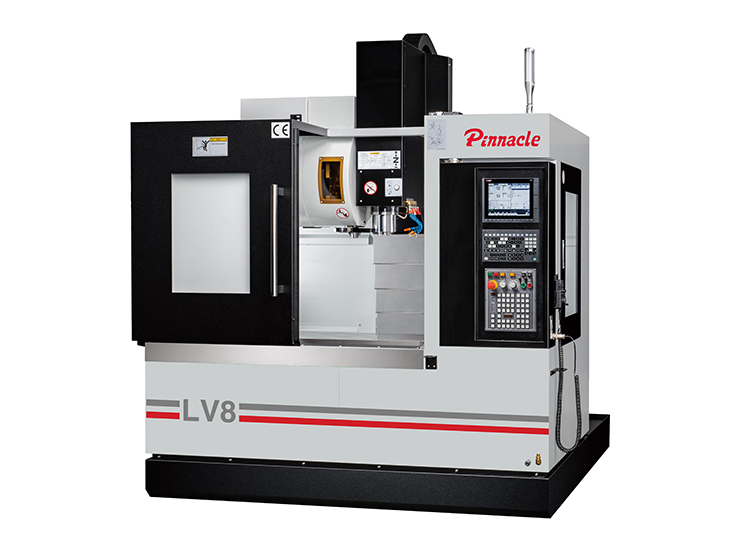

Máy gia công trung tâm dọc Pinnacle LV8

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

MODELLV5LV8TABLETable Size (mm)660x410910x510Travel Rangers (X/Y/Z mm)510/410/510810/510/510Max. Table Load (Kgs)200300Spindle Nose to Table Surface (mm)100~610100~610T-slot (Width x Distance x Number mm)14x125x314x125x4SPINDLE*LV5/LV8 both are

MODEL	LV5	LV8
TABLE
Table Size (mm)	660x410	910x510
Travel Rangers (X/Y/Z mm)	510/410/510	810/510/510
Max. Table Load (Kgs)	200	300
Spindle Nose to Table Surface (mm)	100~610	100~610
T-slot (Width x Distance x Number mm)	14x125x3	14x125x4
SPINDLE	*LV5/LV8 both are available
Tool Shank & Pull Stud	ISO30	ISO40
Spindle Inner Diameter (mm)	直結Ø45	直結Ø60
Spindle Center to Column (mm)	462	562
Spindle Speed (rpm) Direct-Drive	12000 (15000)	12000 (15000)
Spindle Speed (rpm) Built-in	24000 (36000/HSK-E40)	-
Draw Bar Force (Kgf)	300	600
Main Motor (Con. / 30min. Kw)	3.7 / 5.5
AXIS SERVO MOTOR
Rapid Feed Rate (X/Y/Z m/min)	36 / 36 / 36
Feed Rate (X/Y/Z m/min)	20000
Power X/Y/Z (Kw) Mitsubishi	1.5 / 1.5 / 2.0	1.5 / 1.5 / 2.0
Torque X/Y/Z (Nm) Mitsubishi	4.8 / 4.8 / 6.4	4.8 / 4.8 / 6.4
ATC
ATC Type	Disk
Tool Selection (Bi-direction)	Arm Type
Tool Storage Capacity (Pcs)	20
Max. Tool Diameter (mm)	Ø75
Max. Tool Length (mm)	150	200
Max. Tool Weight (Kgs)	4	7
MISCELLANEOUS
Air Requirement (Kg/cm2)	6
Voltage (V)	220
Power Requirement (KVA)	15
Coolant Tank Capacity (L)	150
Machine Weight (Kgs)	2800	3000
Machine Height (mm)	2815
Floor Space (LxW mm)	1900 x 2250	2200 x 2380
