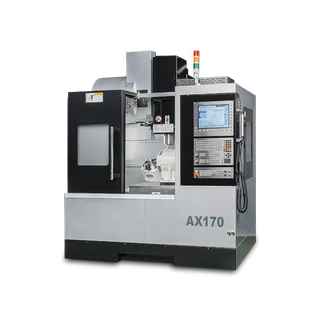

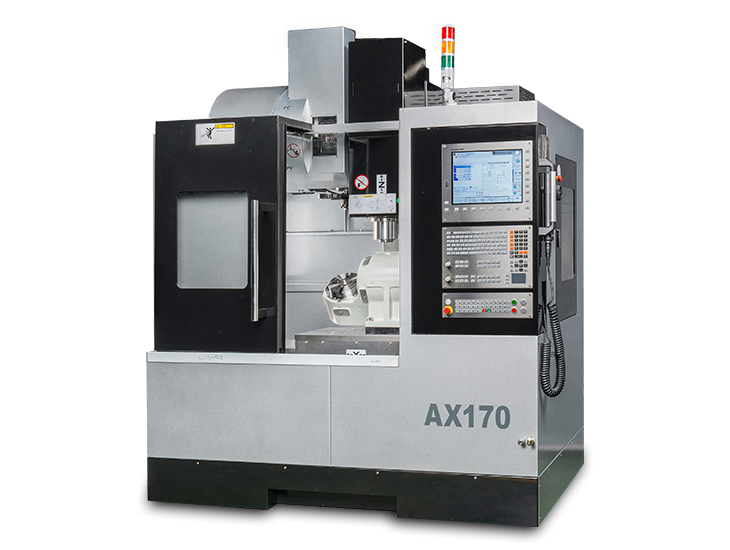

Máy gia công trung tâm 5 trục Pinnacle AX170

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

MODELAX170TABLETable Size (mm)Ø170Travel Ranges (X/Y/Z mm)320 / 320 / 380Spindle Nose to Table Surface(mm)50~430Max. Table Load (kgs)50Max Workpiece Size (WxH mm)Ø210 x 160Diameter of Table Hole (mm)Ø40A-Axis, Title (deg)±120°C-Axis, Rotary (deg)360

MODEL	AX170
TABLE
Table Size (mm)	Ø170
Travel Ranges (X/Y/Z mm)	320 / 320 / 380
Spindle Nose to Table Surface(mm)	50~430
Max. Table Load (kgs)	50
Max Workpiece Size (WxH mm)	Ø210 x 160
Diameter of Table Hole (mm)	Ø40
A-Axis, Title (deg)	±120°
C-Axis, Rotary (deg)	360°
A-Axis Max. Rapid Speed (rpm)	60
C-Axis Max. Rapid Speed (rpm)	200
T Slot Size	14 x 90° x 4
SPINDLE
Tool Shank & Pull Stud	ISO40 (HSKA63)
Spindle Max Speed (rpm)	15000
Spindle Base Speed (rpm)	2000
Spindle Power (S1/max kW)	3.7 / 9.5
Spindle Torque (S1/max Nm)	18 / 45
Spindle Type	Direct
Spindle Bearing Inner Diameter (mm)	Ø60
AXIS SERVO MOTOR
Rapid Feed Rate (XY/Z m/min)	36 / 36 / 36
Cutting Speed (X/Y/Z mm/min)	20000
X/Y/Z-axes Rated Torque (Nm)	1.5 / 1.5 / 2.1
A-Axis Rate Torque (Nm) D.D motor	205
C-Axis Rate Torque (Nm) D.D motor	35
AUTO TOOL CHANGER
ATC Type	DISK
Cam Type	ARM TYPE
Tool Selection (Bi-Direction)	RANDOM
Tool Storage Capacity (PCs)	20
Max. Tool Diameter (mm)	Ø75
Max. Tool Length (mm)	250
Max. Tool Weight (Kgs)	8
MISCELLANEOUS
Positioning Accuracy X/Y/Z(mm)	0.005
A/C(arc-sec)	5" / 5"
Repeatability Accuracy X/Y/Z(mm)	0.003
A/C(arc-sec)	4"/4"
Floor Space (mm)	1900 x 2110 x 2550
Machine Weight (Kgs)	2800
