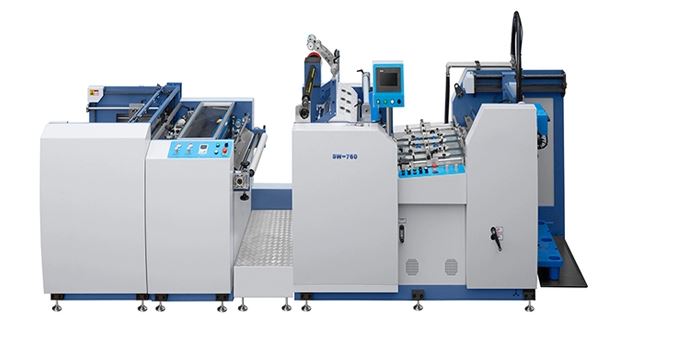

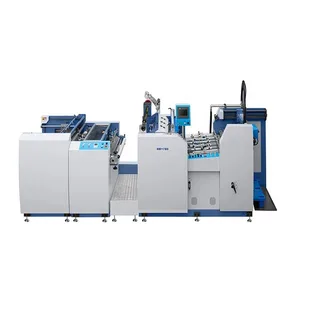

Máy ép nhiệt màng tự động JT-SW820

Feature:

JT-SW820 full automatic pre-glued thermal film hot laminator is updated laminating machine for film and paper lamination. The machine is equipped with complete automation to paper feed, lamination, paper separation, delivery and temperature control. The electrics and pneumatics are controlled by PLC (programmable control) system, and can be operated easily in touch screen. Heating roller adopts electromagnetic heater. To meet users’ different requirements, delivery section is optional for stacker.

This machine centralizes the features of high automation, high precision of lamination, humanized configuration and easy operation, and is the best choice with high cost performance for large and medium-size enterprises.

Configuration:

• Full automatic pre-glued thermal film hot laminator
• Automatic paper feeder adopts oil-free vacuum pump and pre-stacker to feed paper automatically. Paper can be added meanwhile the machine is working, which improves working efficiency
• Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.
• Automatic feeding system is equipped with no sheet protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When paper is miss or break, the machine stop automatically for self-protection.
• Side lay and front lay. The Servo controller front lay and side lay mechanism guarantees precise paper alignment at all times.
• Feeder vacuum table is furnished with air aspirator and front lay etc. to regulate paper conveying and overlap and improve lamination prevision.
• 320mm diameter with high-precision chrome plated heating roller is equipped with electromagnetic heater, which is safe fast pre-heating energy saving and environmental protection. The laminating temperature is adjustable upon applications.
• Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.
• Air shaft releases film, and perfects the precision of film release, and also makes the loading and unloading of film roll much more convenient. The combination of air expansion shaft and braking device can adjust film release tension and release speed.
• Space between separation section and laminator section, which makes the machine maintenance more easier
• Pneumatic separation system realizes automatic paper cut as long as the operator inputs the size of workable paper on the touch screen.
• Corruagating belt makes the paper collection more regular and convient.
• Delivery is standard with jogger.

Specification:
