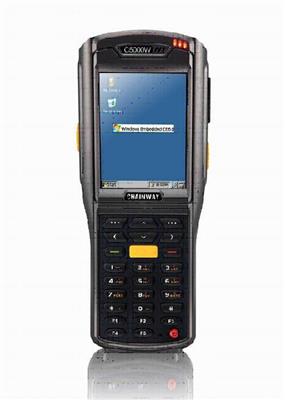

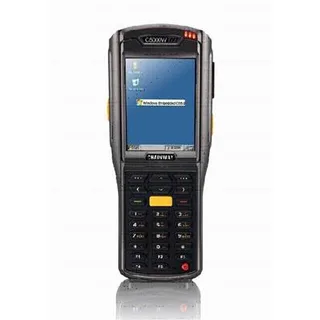

Máy đọc mã vạch Chainway C5000W

Physical Characteristics

Dimensions:

18.65 cm * 7.5 cm * 3.9 cm

Weight:

400g (included battery and scanners)

Display:

Color 3.2″QVGA TFT-LCD with backlight, 65K colors, 240 W x 320 L (QVGA size)

Input Method:

Touch input and keyboard input

Expansion Slot:

PSAM, SIM, MicroSD/TF

Interfaces:

USB2.0; RS-232

Battery:

Rechargeable li-ion polymer battery 3.7V/4000mAh

Audio:

0.5 watt

Keypad:

numeric, full A-Z alphanumeric (Optional)

Performance Characteristics

CPU:

Samsung ARM920T@533MHz

RAM:

128MB

Memory:

1GB NAND FLASH, MicroSD/TF slot, maximum 32G

User Environment

Operating Temp:

-25℃ to 50℃

Storage Temp:

-25℃ to 70℃

Humidity:

5%RH to 95%RH non-condensing

Drop Spec:

1.5 meter drop to concrete, 6 drops per 6 sides over operating temperature range

Tumble Spec:

1,000 0.5m tumbles

Sealing:

IP64

Programming Environment

Operating System:

Windows Embedded CE 6.0

SDK:

Chainway Software Development Kit

Language:

C++, C#, VB.NET, JAVA

Tool:

Visual Studio 2005/2008

1D Linear Scanner

1D CCD scanner:

Symbol SE655 (Optional)

Optical resolution:

5Mil min width

Roll tolerance:

±25º

Pitch tolerance:

±65º

Skew tolerance:

±30º

Ambient light:

0ft.candles-10000ft.candles

Scan repetition rate:

50 per second

Scan angle:

53º±3º

Barcode type:

UPC/EAN, Bookland EAN, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Inverse 1D, MSI, GS1 DataBar, etc.

1D laser scanner:

Symbol SE955 (Optional)

Optical resolution:

4Mil min width

Roll:

100%UPC (5in. ±35º)

Pitch Angele:

100%UPC (5in. ±65º)

Skew tolerance:

100%UPC (5in., ±50º)

Ambient light:

10000ft.candles (107640 lux)

Scan repetition rate:

scan 104 per second (±) 12 times (two-way)

Scan angle:

47º±35º(standard)/ 35º±3º (narrow-angle)

Barcode type:

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS

2D Imager Scanner

CMOS laser scanner:

Symbol SE4500

Sensor resolution:

752 (horizontal ) * 480 (perpendicular) pixel (gray level)

Roll tolerance:

360º

Pitch tolerance:

±60º

Skew tolerance:

±60º

Ambient light:

9000ft.candles/96900 lux (lightless)

Aiming LED (VLD):

655nm ± 10nm

Illumination element:

650nm ± 5nm

Field of view:

40º horizontal, 25º perpendicular

Barcode type:

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)

Decode ranges:

Camera

3.2MP camera 2048(H)*1536(V), QXGA

RFID

LF

Frequency:

125kHz ~ 134.2kHz

Protocol:

ISO11784/5

Distance:

0 cm~8 cm for FDX-B; 0 cm~16 cm for HDX

HF (Optional)

Frequency:

13.56MHz

Protocol:

ISO14443A/B, ISO15693 (Optional)

Distance:

0 cm~8 cm

WIFI

Protocol:

IEEE802.11 b/g

GPRS

Frequency:

GSM/GPRS (850,900,1800,1900MHz) 85.61/42.8bps

Bluetooth

Class 2.0+EDR, 3~5 m

GPS

GPS:

low energy GPS chip

Regulatory

EMC:

ETSI EN 301 489-1, ETSI EN 301 489-3, ETSI EN 301 489-17, EN 55022, EN 55024

Health and Safety:

EN 62311, EN 62209-2, EN 60950-1, EN 62133

Wireless and RF:

ETSI EN 300 328, ETSI EN 300 330-1, ETSI EN 300 330-2,ETSI EN 300 440-1, ETSI EN 300 440-2

Standard accessories

Power Adapter:

1

Data Cable:

1

MicroSD(TF) card:

1

Carrying Case:

1

Optional accessories

Cradle (docking station)

Single unit charger (battery charger)
