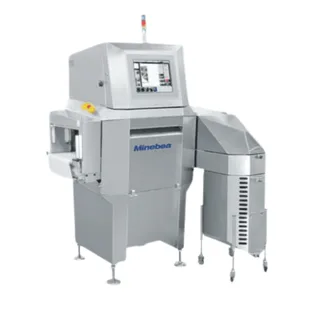

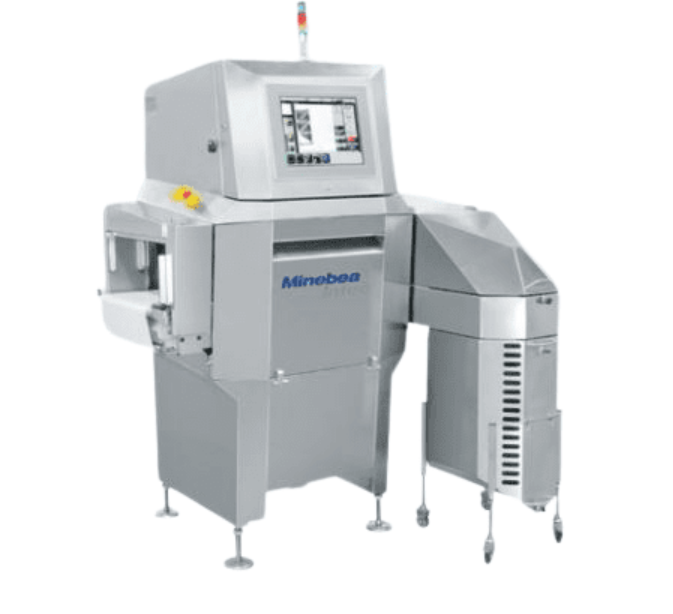

Máy Dò Tạp Chất Minebea Intec Dymond 80

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Thông số kỹ thuật của máy dò tạp chất Minebea Intec Dymond 80.ModelDymond 80X-ray power70 kV-1.2 mA 80 kV-2 mADetector resolution0.8 or 0.4 mmBelt speed range10 to 49 m/min (with standard drum motor)/ up to 73 m/minApprovalsCE, UL/CSASafety locksSIL

Thông số kỹ thuật của máy dò tạp chất Minebea Intec Dymond 80.

Model	Dymond 80
X-ray power	70 kV-1.2 mA 80 kV-2 mA
Detector resolution	0.8 or 0.4 mm
Belt speed range	10 to 49 m/min (with standard drum motor)/ up to 73 m/min
Approvals	CE, UL/CSA
Safety locks	SIL 3 Category IV PL e, magnetic
User interface	15-inch touchscreen
Operating temperature	+5°C to +40°C
Machine cooling	500 W air cooling (optional with Nema4X / IP65)
Relative air humidity	20% to 90%, no condensation
Digital outputs	4 available
Digital inputs	7 available
USB port	Yes
Network connection	Ethernet
Radiation protection	FDA CFR 21 part 1020.40 (additional regional certifications available from the manufacturing plant)
Compressed air	5.5 to 6.9 bar
International protection class	IP 34 (standard) / IP 65 with Nema4X air cooling / IP69K on request
Electrical supply	230 V AC ± 10% (standard)
Max. product size	See X-ray beam geometry. Possibly lower through protective curtains.
Max. throughput*, depending on product length	40 m/minute or 80 m/minute* depending on detector
Max. power consumption	16 A
Weight (standard configuration)	500 kg
Height	800–999 mm
