MÁY ĐO OTDR MW6418 Paml (Module 2101)

Dynamic range

Please refer to "OTDR modules specifications"

Distance uncertainty

±(0.75m+ sample space + measurement distance×0.003%)¹

Sampling resolution

0.05,0.1,0.2,0.5,1,2,4,8,16m

Distance range

0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512km(SMF);
0.4,0.8,1.6,3.2,6.4,16,32 (MMF of 850nm)

Pulse width

5,10,30,80,160,320,640,1280,5120,10240,20480ns
5,10,30,80,160,320,640,1280 (MMF of 850nm)

Loss threshold

0.01dB

Sampling points

Up to 128k

Linearity

0.05dB/dB

Loss resolution

0.001dB

Memory capacity

≥800traces(build-in), ≥65500traces(2GB SD storage)

Group refractive index setting

1.00000 to 2.00000 (0.00001steps)

Distance unit

km,m,kft,ft

Display

640×480, 6.5 inch TFT-LCD (touch screen)

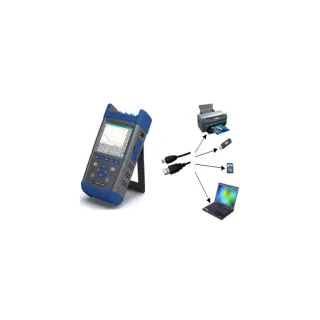

Interface

USB, Min-USB, Ethernet, earphone, SD

Optical connector

FC/SC/ST (universal connector)

VFL

650nm±10nm,2mW(typical);CW/1Hz

Optical Power Meter

Wavelength range: 1270nm to 1700nm Measurement range: -60 to +3dBm Measurement accuracy: 5% ( -10dBm, CW)

Power supply

AC adapter 100 to 240V, 50/60Hz,1.5ADC:19V±2V(2A) Built-in Lithium battery: 4400mAh, operating time ≥8 hours²

Language

User selectable: simplified Chinese, English, Russian, Korean etc.. (please contact CETC 41st for others)

Environment

Operating temperature: -10 to50℃(charging:5 to40℃)
Storage temperature: -40 to70℃(Battery: -20 to60℃)
Relative humidity: 5% to 95%, non-condensing

Dimensions

295×186×75(mm)

Weight

2.5kgApprox.
