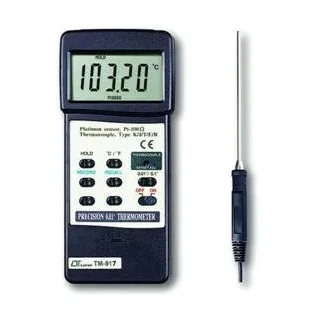

Máy đo nhiệt độ LUTRON TM-917

GENERAL  SPECIFICATIONS

Display

62 mm x 34 mm supper large LCD

display, 13 mm ( 0.5" ) digit size.

Sampling Time

Approx. 0.4 second.

Hold Function

To freeze the display reading value.

Probe type

5 types :

1. Platinum PT 100 ohm

( 0.00385 alpha coefficient, meet DIN IEC 751 )

2. Thermocouple type K.

3. Thermocouple type J.

4. Thermocouple type T.

5. Thermocouple type E.

6. Thermocouple type R.

Memory Recall

Memorize the Maximum, Minimum

reading with recall.

Over Indication

Show " - - - - ".

Data Output

RS232 PC serial interface.

Power Supply

Heavy duty or Akaline type,

DC 9V battery, 006P, MN1604 ( PP3 )

or equivalent.

Power

Consumption

Approx. DC 15 mA.

Functions

℃, ℉, 0.010.1 Data hold, relative measurement.

Operating

Temperature

0 to 50 ℃ (32 to 122 ℉).

Resolution

0.01℃/0.1℃,  0.01℉/0.1℉.

Operating

Humidity

Less than 80% RH.

Circuit

Use the software to make linearity

correction instead the traditional hardware circuit.

Meter Size

HWD 180x72x32 mm ( 7.1x2.8x1.3 inch

Meter Weight

285 g/0.62 LB.

Probe input

socket

Pt 100 ohm probe :

DIN 4 pin socket.

Thermocouple couple probe :

Standard 2 pin type K socket.

Standard

Accessory

Operational manual..... 1 PC.

Optional

Accessories

Carrying case, Pt-100 probe,

Type K Thermocouple probe.

MEASURING RESOLUTION / RESOLUTION

Type

Resolution

Range

Type

Resolution

Range

Platinum

PT 100 ohm

0.01 ℃

-199.99 to 199.99 ℃

Thermocouple

type T

0.01 ℃

-100.00 to 100.00 ℃

0.1 ℃

200.0 to 850.0 ℃

0.1 ℃

100.0 to 400.0 ℃

0.02 ℉

-199.99 to 392.00 ℉

0.02 ℉

-148.00 to 212.00 ℉

0.2 ℉

392.0 to 1562.0 ℉

0.2 ℉

212.0 to 752.0 ℉

Thermocouple

type K

0.01 ℃

-100.00 to 100.00 ℃

Thermocouple

type E

0.01 ℃

-80.00 to 90.00 ℃

0.1 ℃

100.0 to 1370.0 ℃

0.1 ℃

90.0 to 779.9 ℃

0.02 ℉

-148.00 to 212.00 ℉

0.02 ℉

-112.00 to 194.00 ℉

0.2 ℉

212.0 to 2498.0 ℉

0.2 ℉

194.0 to 1435.8 ℉

Thermocouple

type J

0.01 ℃

-90.00 to 100.00 ℃

Thermocouple

type R

0.1 ℃

0 to 600.0 ℃

0.1 ℃

100.0 to 900.0 ℃

1 ℃

600 to 1770 ℃

0.02 ℉

-130.00 to 212.00 ℉

0.2 ℉

32.0 to 112.0 ℉

0.2 ℉

212.0 to 1652.0 ℉

1 ℉

112 to 3218 ℉

OPTIONAL TEMPERATURE PROBE &  OTHER ACCESSORIES

Carrying Case

Model : CA-03, Vinyl soft carrying case.

Carrying Case

Model : CA-06, Hard carrying case

PT-100 ohm Probe

TP-100

TP-100A

* -50 ℃ to 400 ℃ (-58 ℉ to 752 ℉), DIN plug, 4 pins/4 wires, Class A, Cooperate with an

0.00385 alpha coefficient, meet DIN IEC 751, Accuracy : (0.15 + (0.002 x T))C.

* Dimension Sensing head - 152 mm tube, Probe length - 245 mm.

Thermocouple Probe

(Type K) TP-01

* Measure Rage: -40 ℃ to 250 ℃,  -40 ℉ to 482 ℉.

* Ultra fast response naked-bead thermocouple, general purpose  application.

Thermocouple Probe

(Type K), TP-02A

* Measure Range: -50 ℃ to 900 ℃, -50 ℉ to 1650 ℉.

* Dimension: 10 cm tube, 3.2 mm Dia.

Thermocouple Probe

(Type K), TP-03

* Measure Range: -50 ℃ to 1200 ℃, -50 ℉ to 2200 ℉.

* Dimension: 10 cm tube, 8 mm Dia.

Surface Probe

(Type K), TP-04

* Measure Range: -50 ℃ to 400 ℃, -50 ℉ to 752 ℉.

* Size : Temp. sensing head - 15 mm Dia. Probe length - 120 mm.

RS232 cable

Model : UPCB-01, RS232 cable for connecting between the meter & computer COM port

USB cable

Model : USB-01, USB cable for connecting between the meter & the computer USB port.

Software

Model : SW-U801-WIN, Windows version.

* Software apply as the performance of data logging system & data recorder...
