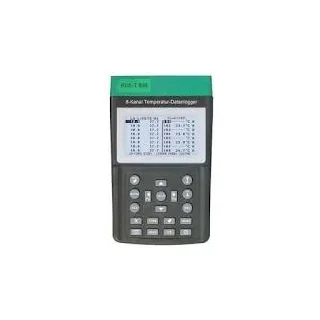

Máy đo nhiệt độ data logger 8 kênh PCE T800

- Khoảng đo:
Kiểu K:
Measurement range                             Accuracy
  -200 ... -150 ºC                                     ±3,0 ºC
  -150 ... -100 ºC                                     ±2,0 ºC
  -100 ... 999,9 ºC                      ±0,05 % / ±1,0 ºC
   1000 ... 1370 ºC                      ±0,2 % / ±1,0 ºC
Type J
Measurement range                              Accuracy
 -200 ... -100 ºC                                        ±2,5 ºC
 -100 ... 100 ºC                                         ±1,5 ºC
 100... 760 ºC                             ±0,05 % / ±1,0 ºC
Type E
Measurement range                              Accuracy
 -150 ... -100 ºC                                         ±2,0 ºC
 100 ... 760 ºC                             ±0,05 % / ±1,0 ºC
Type T
Measurement range                               Accuracy
 -200 ... -150 ºC                                         ±3,0 ºC
 -150 ... -100 ºC                           ±0,1 % / ±1,5 ºC
 -100 ... 400 ºC                             ±0,1 % / ±1,5 ºC
Type R/S
Measurement range                               Accuracy
 0 ... 100 ºC                                                ±5,0 ºC
 100 ... 300 ºC                                            ±3,0 ºC
 300 ... 999,9 ºC                         ±0,05 % / ±2,0 ºC
1000 ... 1600 ºC                         ±0,1 % / ±2,0 ºC
Type N
Measurement range                              Accuracy
 0 ... 999,9 ºC                               ±0,1 % / ±1,0 ºC
 1000 ... 1300 ºC                          ±0,2 % / ±1,0 ºC
Type L
Measurement range                              Accuracy
 -200 ... 900 ºC                            ±0,1 % / ±1,0 ºC
Type U
Measurement range                             Accuracy
 0 ... 600 ºC                                 ±0,1 % / ±1,0 ºC
Type B
Measurement range                             Accuracy
 600 ... 999,9 ºC                         ±0,05 % / ±2,0 ºC
 1000 ... 1760 ºC                        ±0,1 % / ±2,0 ºC
Type C
Measurement range                             Accuracy
 0 ... 999,9 ºC                              ±0,1 % / ±1,5 ºC
 1000 ... 1760 ºC                         ±0,2 % / ±1,5 ºC
mV
Measurement range                             Accuracy
 -60 mV ... 60 mV                                    ±60 µV
 - Màn hình hiển thị:
                4,5" STN LCD (240 X 128 pixels )
" - Nguồn: 8 pin x 1,5 V AA
  DC 12 V mains component/ 300 mA
output AC 110 V / 220 V input
"
 - Current consumption :
        100 mA (with backlight)
        70 mA (without backlight)
 - Kích Thước: 257 x 155 x 57 mm
 - Khối lượng: 1160 g ( with batteries )
 - Operating conditions: 0 ºC ... 50 ºC / 85% H.r .
 - Storing conditions: -20 ºC ... 60 ºC / 75% H.r .
Cung cấp bao gồm:
 - 1 x 8 channels thermometer with data logger PCE-T 800
 - 7 x type K   temperature sensors (1 m / - 50 ºC ... 200 ºC)
 - 1 x temperature sensor (3 m / -50 ºC ... 200 ºC)
 - 8 x 1,5 V AA batteries
 - 1 x software
 - 1 x USB cable
 - 1 x mains adapter
 - user’s manual
 - 1 x software and user’s manual
 - 1 x 2 GB SD memory card
 - 1 x carrying case
Phụ kiện đặt mua thêm
Đầu đo nhiệt độ nam châm
Đầu đo mua thêm :
Magnet.-Surfaceprobe TF-513 (110 EUR)
Dải đo:  -50°C  to 200°C
Hãng sản xuất : PCE - Group
