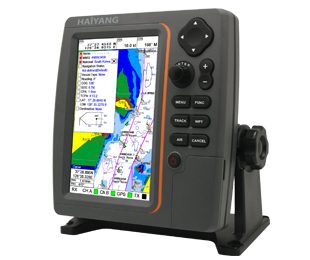

Máy định vị hải đồ Haiyang HIS-70R

Operating system Microsoft Windows
Display screen:Wide 7inch color TFT LCD, LED back-light
Power supply:DC 12V~36V
Operating Temperature:Display Unit -15°C~+50°C
Antenna Unit -25°C~+70°C
Performance Standard:IMO Resolution MSC.112(73)
IMO Resolution MSC.112(73):True motion/North up.Course-up/Head up
Latitude Limits Between 85° N to 85° S
Map Scale 0.05nm~500nm
Map Datum WGS-84
Waypoint:20,000 point
Track Point:50,000 point
Chart Data:Built-in/C-MAP
Output Data:NMEA-0183
Alarm Interval timer AIS(CPA, TCPA)
Receive Frequency L1 1575.42MHz(C/A)
Number of Channel 12channel over
Accuracy:Position 2.5m CEP
Sensitivity:Acquisition -140 dBm, Tracking -149 dBm
Data Update Rate:1 Second
