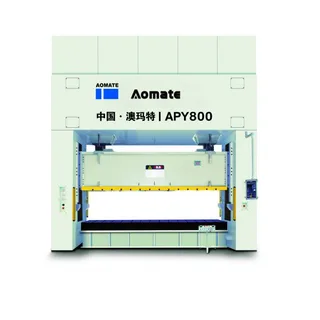

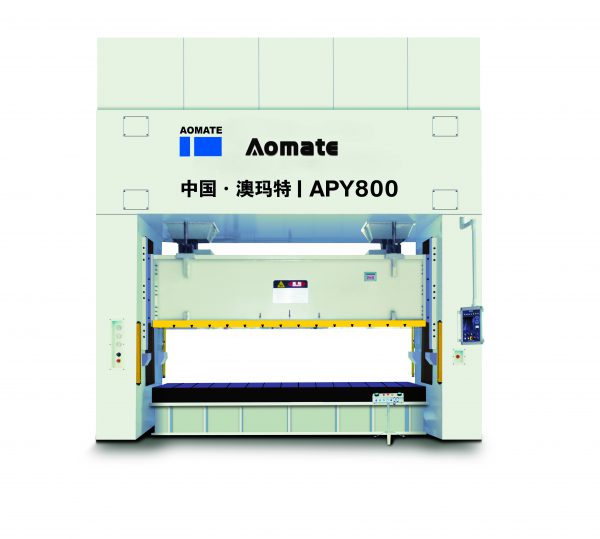

Máy dập Aomate APY-600

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

UnitAPY-600APY-800APY-1000APY-1200APY-1600CapacityTon 600 800 1,000 1,200 1,600Rated tonnage pointmm 8 12 8 12 13 9 13 9 13 9 13 9 1313Stroke lengthmm 300 350 300 350 350 300 350 300 400 300 350 400400Stroke per minutes.p.m20-3515-3020-3515-3010-2015

	Unit	APY-600				APY-800				APY-1000				APY-1200	APY-1600
Capacity	Ton	600				800				1,000				1,200	1,600
Rated tonnage point	mm	8	12	8	12	13	9	13	9	13	9	13	9	13	13
Stroke length	mm	300	350	300	350	350	300	350	300	400	300	350		400	400
Stroke per minute	s.p.m	20-35	15-30	20-35	15-30	10-20	15-25	10-20	15-25	10-20	15-25	10-20	15-25	10-20	10-20
Die height	mm	700	900	700	900	900	800	900	800	1,000	900	1,000	900	1,200	1,200
Maximum counterbalancer capacity	kg/cm²	4,000		5,500		6,000		8,000		7,500		9,000		12,000	15,000
Slide adjustment	mm	200	250	200	250	250				250				300	300
Slide area	mm	3600×1400		4600×1500		4500×1600		5000×1600		4500×1600		5000×1600		5000×1800	5000×1800
Bolster area	mm	3600×1500		4600×1500		4500×1600		5000×1600		4500×1600		5000×1600		5000×1800	5000×1800
Bolster thinkness	mm	250				280				300				300	300
Slide opening	mm	750×700		750×800		1000×900				1000×1000				1200×1100	1200×1100
Height of the top surface of bed from floor level	mm	1,000				700				700				800	800
Work energy	kg-m	6,000	9,000	6,000	9,000	12,000	10,000	12,000	10,000	18,000	10,000	18,000	10,000	20,000	28,000
Main motor	kwxp	75×4				90×4				110×4				132×4	200×4
Slide adjusting motor	kg/cm²	7.5×4				15×4				15×4

Unit	APY-600				APY-800				APY-1000				APY-1200	APY-1600
Capacity	Ton	600				800				1,000				1,200	1,600
Rated tonnage point	mm	8	12	8	12	13	9	13	9	13	9	13	9	13	13
Stroke length	mm	300	350	300	350	350	300	350	300	400	300	350		400	400
Stroke per minute	s.p.m	20-35	15-30	20-35	15-30	10-20	15-25	10-20	15-25	10-20	15-25	10-20	15-25	10-20	10-20
Die height	mm	700	900	700	900	900	800	900	800	1,000	900	1,000	900	1,200	1,200
Maximum counterbalancer capacity	kg/cm²	4,000		5,500		6,000		8,000		7,500		9,000		12,000	15,000
Slide adjustment	mm	200	250	200	250	250				250				300	300
Slide area	mm	3600×1400		4600×1500		4500×1600		5000×1600		4500×1600		5000×1600		5000×1800	5000×1800
Bolster area	mm	3600×1500		4600×1500		4500×1600		5000×1600		4500×1600		5000×1600		5000×1800	5000×1800
Bolster thinkness	mm	250				280				300				300	300
Slide opening	mm	750×700		750×800		1000×900				1000×1000				1200×1100	1200×1100
Height of the top surface of bed from floor level	mm	1,000				700				700				800	800
Work energy	kg-m	6,000	9,000	6,000	9,000	12,000	10,000	12,000	10,000	18,000	10,000	18,000	10,000	20,000	28,000
Main motor	kwxp	75×4				90×4				110×4				132×4	200×4
Slide adjusting motor	kg/cm²	7.5×4				15×4				15×4
