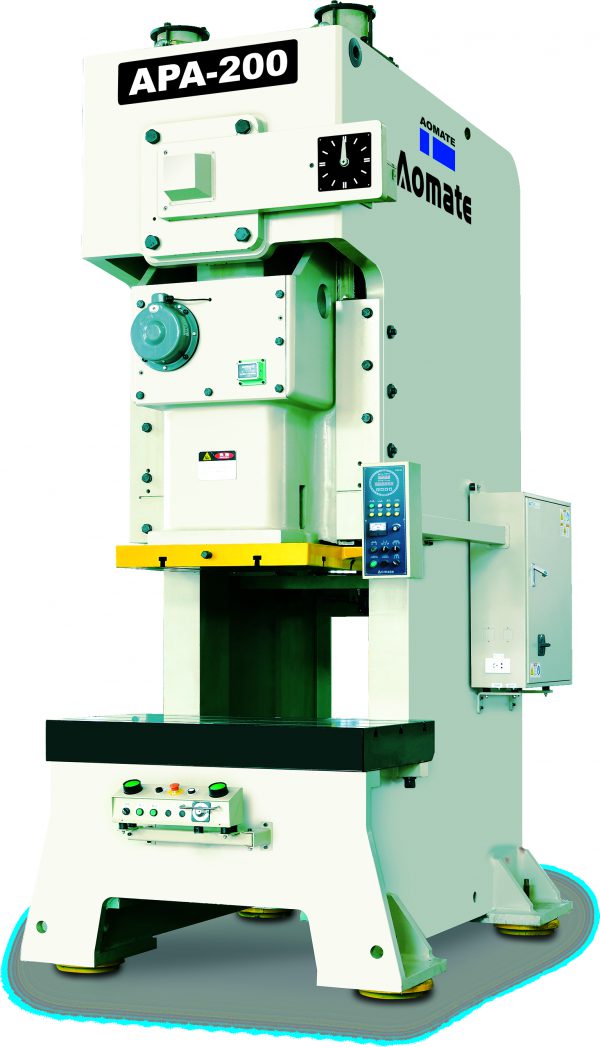

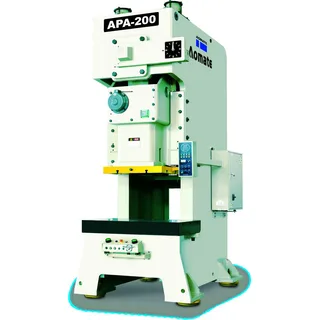

Máy dập Aomate APA160B

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

SPECIFICATIONUnitAPA-80BAPA-110BAPA160BAPA-200BAPA-315BModelVHVHVHVHVHCapacityTon80110160200315Rated tonage pointmm4266684Speed changingS.P.M35-8080-12030-6020-5020-5020-4030-50Stable SpeedS.P.M65503535Strokemm15070180200200250150Die

SPECIFICATION
	Unit	APA-80B		APA-110B		APA160B		APA-200B		APA-315B
Model		V	H	V	H	V	H	V	H	V	H
Capacity	Ton	80		110		160		200		315
Rated tonage point	mm	4	2	6		6		6		8	4
Speed changing	S.P.M	35-80	80-120	30-60		20-50		20-50		20-40	30-50
Stable Speed	S.P.M	65		50		35		35
Stroke	mm	150	70	180		200		200		250	150
Die height	mm	340	380	360		460		460		500	550
Slide adjustment	mm	80		80		100		110		120
Slide area	mm	560x420x70		650x470x80		700x550x90		850x630x90		950x700x120
Bolster area	mm	1000x550x90		1150x600x110		1250x800x140		1400x820x160		1600x900x180
Shank hole	mm	Ø50		Ø50		Ø65		Ø65
Main motor	kw.p	7.5×4		11×4		15×4		18.5×4		30×4
Slide adjust device	HP	Electric driving
Air pressure	kg/cm²	6		6		6		6		6
Presses precision		GB/JIS1 Class
Presses dimension	mm	1800x1180x2800		1900x1300x3200		2300x1400x3800		2615x1690x4075		2980x2150x4500
Presses weight	ton	6.5		9.6		16		23		35
Die cushion capacity	ton	3.6		6.3		10		14		14
Stroke	mm	70		80		80		100		100
Die cushion effective area	mm²	450×310		500×350		650×420		710×480		810×480
