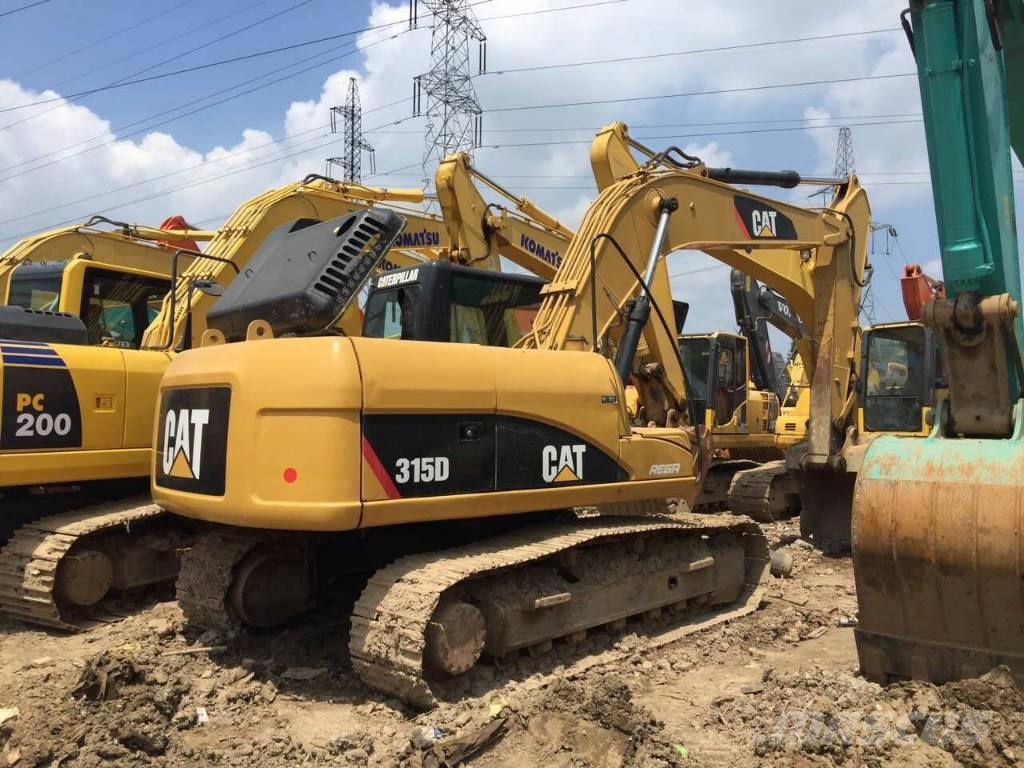

Máy đào Caterpillar 315DL

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Máy đào 315DL hãng sản xuất Caterpillar.EngineEngine ModelCat® C4.2 ACERT™Flywheel Power86.0kWGross Power91.0kWISO 924986.0kWBore102.0mmStroke130.0mmDisplacement4.25LNet Power - SAE J134986.0kW WeightsOperating Weight17280.0kgOperating Weight - Long

Máy đào 315DL hãng sản xuất Caterpillar.

Engine
Engine Model	Cat® C4.2 ACERT™
Flywheel Power	86.0kW
Gross Power	91.0kW
ISO 9249	86.0kW
Bore	102.0mm
Stroke	130.0mm
Displacement	4.25L
Net Power - SAE J1349	86.0kW

Weights
Operating Weight	17280.0kg
Operating Weight - Long Undercarriage	17280.0kg

Swing Mechanism
Swing Torque	43400.0kN·m
Swing Speed	10.2RPM

Drive
Maximum Drawbar Pull	157.0kN
Travel Speed	5.6km/h

Hydraulic System
Main Implement System - Maximum Flow (2x)	150.0L/min
Maximum Pressure - Implements	35000.0kPa
Maximum Pressure - Travel	35000.0kPa
Maximum Pressure - Swing	22550.0kPa
Pilot System - Maximum Flow	26.2L/min
Pilot System - Maximum Pressure	4120.0kPa
Boom Cylinder - Bore	110.0mm
Boom Cylinder - Stroke	1193.0mm
Stick Cylinder - Bore	120.0mm
Stick Cylinder - Stroke	1331.0mm
Bucket Cylinder - Bore	100.0mm
Bucket Cylinder - Stroke	1048.0mm

Service Refill Capacities
Fuel Tank	300.0L
Cooling System	22.0L
Engine Oil	17.5L
Swing Drive (each)	3.0L
Final Drive (each)	5.0L
Hydraulic System (including tank)	190.0L
Hydraulic Tank	106.0L
