Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

FEATURES● Table surface is precision ground, assuring cutting accuracy. ● The sawblade on the left side is standard machine, shown as picture. (Option, the sawbalde on the right side) ● Cycle speed is adjustable and up to 10~15 strokes per minute.

FEATURES

● Table surface is precision ground, assuring cutting accuracy.

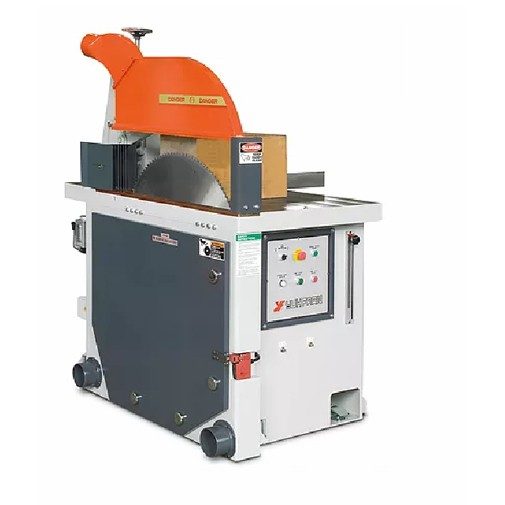

● The sawblade on the left side is standard machine, shown as picture. (Option, the sawbalde on the right side)
● Cycle speed is adjustable and up to 10~15 strokes per minute.
● Motion cycle is pneumatic operated and controlled by foot switch. (Option, dual hand buttons)
● Powerful 25HP motor drive.
● T-clamp is easily adjusted for workpiece thickness variation.

＊We reserve the right to modify design without prior notice.

Safety Guard (Option)

● The complete safety for fast cutting operation and to avoid operator to approach the cutting area.

Safety Guard

Oil lubricator

● It is used for lubricating the T-clamp and effectively enhancing the smoothness of T-clamping motions.

Pedal Electric Roller Conveyor

Pedal Electric Roller Conveyor (Option)

● 1HP inverter motor drive.

● Foot switch controls roller rotation.

● Standard length is 2M. Available in any length.

SPECIFICATIONS

● Cutting capacity (Thickness x Width)：

12″ x 12″, 10″ x 20″, 8″ x 25″, 6″ x 29″, 4″ x 31″, 2″ x 33″
● Cycle speed：10~15 cuts/min
● Cycle operation：Pneumatic
● Saw blade diameter (Option)：ø36″
● Saw arbor diameter：ø2″
● Saw blade speed ：1500 rpm

● Dust exhaust diameter：ø5″ x (2)
