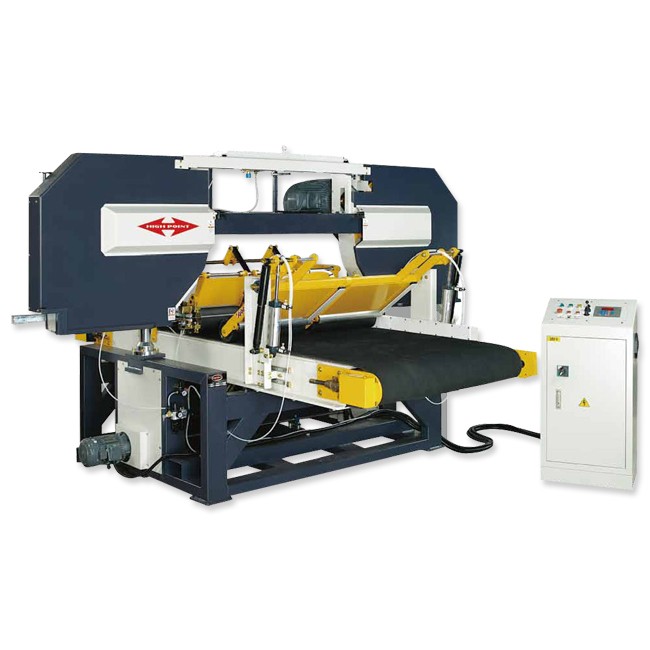

MÁY CƯA LỌNG NẰM NGANG HP 1300

EXTRA WIDTH BAND RESAWS

Model: HP 1300 – TAIWAN

1.  With Digital Readout

2. Max. Working size  : 1300mm(W) x 250mm (H)

3. Distance from blade to conveyor table : 4-250mm

4. Comveyor belt size  : 1275mm(W) x 10300mm(L)

5. Saw wheel dimension : Φ42” x 4” ( Thickness)

6. Feed Speed : 0-10M/min

7. Saw wheel motor : 40HP

8. Inverter motor : 40HP

9. Dust hood diameter : 4” x 1

10. Saw blade size : 8072mm(L) x 4″(W) x 1.0mm(Thickness)

11. Conveyor System : Hydraulic 5HP Motor

12. Elevation Motor : 2HP

13. Packing Dimensions with Pallet :

• Frame : 3580 x 1850 x 2150mm
• With Electric Control Box : 700 x 600 x 950mm
• Conveyor : 3460 x 1760 x 1000mm

14. Machine N.W : 4500kgs

15. Pneumatic Pressure Roller System

16. Hold Down Roller by air Cylinder

17. With mist Coolant System for sawblade

18 . With air/Hydraulic Compensation System

19. Min. working length : 500mm
