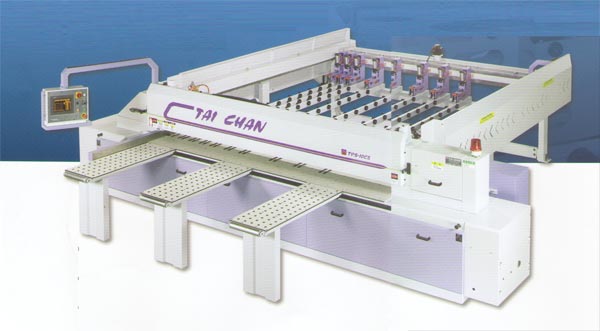

Máy cưa cắt tấm TPS-10CS

MODEL

TPS-10CS

Capacity

Maximum cutting length

3250 mm

Maximum cutting depth

80 mm

Maximum cutting width

3250 mm

Main sawblade

Main blade diameter

Æ355 mm

Arbor diameter main blade speed

Æ1” (30 mm)

Main blade speed

4800 RPM

Scoring sawblade

Blade diameter

Æ180 mm

Arbor diameter

Æ1’ (30 mm)

Scoring blade speed

6500 RPM

Saw carriage

Feed forward speed

5-37 m/min

Return speed

67 m/min

Motor

Main sawblade motor

13 HP (15 HP Optional)

Saw carriage drive motor

2 HP

Hight pressure blower motor

3 HP

Automatic feed system

1 kw (AC Servo motor)

Other

Automatic panel feed speed

30 m/min

Working air pressure

5-6 kg/cm²

Table height from floor

820 mm

Gripper ( number of grippers)

8

Net weight / Gross weight

4500/5100 kg

Machine dimensions(LxWxH)

232”x244”x60”
