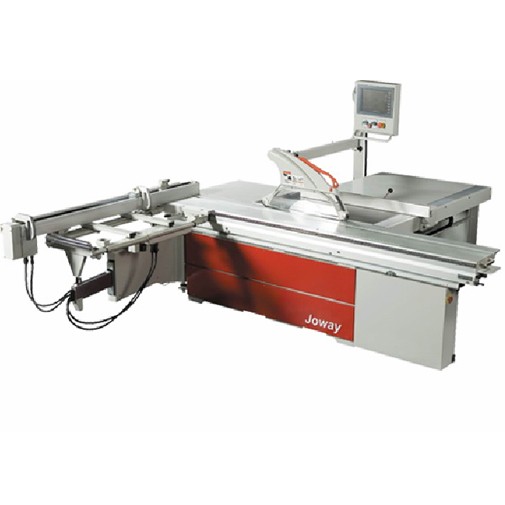

MÁY CƯA BÀN TRƯỢT UP450-3H

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

ITEM / MODELUP350-3HUP450-3HMain saw blade dimeter max.Ø 350 (14″)Ø 450 (18″)Max. cutting height with blade at 90 °100150Max. cutting height with blade at 45 °70105Rectified cast iron fixed table dimension620*1000620*1125Touch screen5.7″ STN

ITEM / MODEL	UP350-3H	UP450-3H
Main saw blade dimeter max.	Ø 350 (14″)	Ø 450 (18″)
Max. cutting height with blade at 90 °	100	150
Max. cutting height with blade at 45 °	70	105
Rectified cast iron fixed table dimension	620*1000	620*1125
Touch screen	5.7″ STN color
Sliding table dimension	380*2600 / 3200 / 3800
Main saw bore	Ø 30 ( Ø 25.4 )
Main motor power 7.5HP (5.5kw)	●
Main motor power 10HP (7.5 kw)	V
Main blade speed	3000 / 4000 / 5000 / 6000 rpm
Scoring saw blade Ø 120	●
Scoring saw blade bore	Ø 22
Scoring motor power 1 HP (0.75 kw )	●
Scoring blade speed 8000 rpm	●
Cutting width 1300 mm	●
cutting width 1500 mm	V
Saw table extension 400 mm	●
Saw table extension 800 mm (CE)	V
Crosscut fence	Manual
Crosscut fence flip stop digital display (manual)	V
Miter fence	●
Crosscut-mitre fence manual (+-46°)	V
Cutting width adjustment	CNC control
Blade tilting adjustment	CNC control (0°~45° )
Main saw height adjustment	CNC control
Scoring saw height adjustment	Motorized
Scoring saw + / – direction adjusment	Motorized
Overhead saw guard	Luxurious
Cross slide width extension	V
Safety bar	●
Hanging type control panel	●
Rapid clamp	V
Tool frame	●
Memory programe	Max. 300 set
Dust collection system	Main chanel 5″, Luxurious 3″
