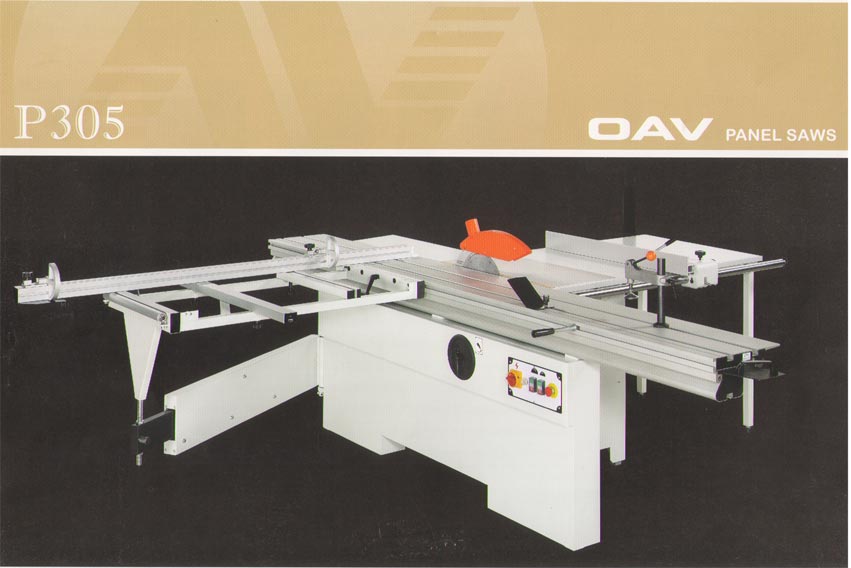

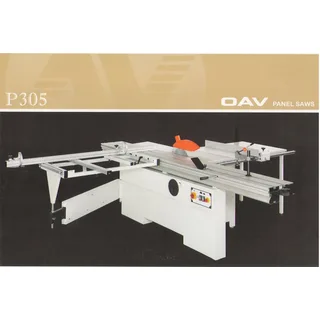

Máy cưa bàn trượt - Máy cắt MDF - P305

ITEM

P305         2,500 mm

P305         3,200 mm

Sliding table dimension

2,500 x 360

3,200 x 360

Cast iron table

548 x 896 mm

548 x 896 mm

Extension table (rear)

952 x 896 mm

952 x 896 mm

Extension table (front)

320 x 830 mm

320 x 830 mm

Table size

1,500 x 1,726 mm

1,500 x 1,726 mm

Round rail

j40

j40

Main saw blade (max)

305 mm (355 mm)

305 mm (355 mm)

Main saw bore

30 mm

30 mm

Max. cutting height with blade 305 mm at 90° (355 mm)

90 mm( 115 mm)

90 mm( 115 mm)

Max. cutting height with blade 305 mm at 45° (355 mm)

62 mm (70 mm)

62 mm (70 mm)

Main motor power (3 ph)

5 HP (3.75 kw)

5 HP (3.75 kw)

Main blade speed

4,000 r.p.m.

4,000 r.p.m.

Scoring saw blade

120 mm

120 mm

Scoring saw blade bore

20 mm

20 mm

Scoring blade motor power (optional)

¾ HP (0.56 kw)

¾ HP (0.56 kw)

Scoring blade speed

8,000 r.p.m.

8,000 r.p.m.

Cutting width

1,300 mm

1,300 mm

Main saw blade tilting adjustment

Manual (0°~45°)

Manual (0°~45°)

Saw guard

Simple (overhead guard optional)

Simple (overhead guard optional)

Dust collection system

120 mm/60 mm

120 mm/60 mm

N.W./G.W./MEAS.(machine)

500/600 kgs (2,110 x 1,130 x 1,120 mm)

500/600 kgs (2,110 x 1,130 x 1,120 mm)
