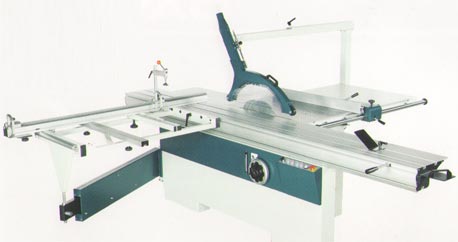

Máy cưa bàn trượt - Máy cắt MDF - D401

ITEM

D401

Sliding table dimension

3,200 x 360 mm

Cast iron table

548 x 896 mm

Extension table (rear)

952 x 896 mm

Extension table (front)

320 x 830 mm

Table size

1,500 x 1,726 mm

Round rail

j 40

Main saw blade (max)

j 400 (16”)

Main saw bore

j 30 mm

Max. cutting height at 90° (355 mm)

105

Max. cutting height at 45° (355 mm)

70

Main motor power (3 ph)

7.5 HP (5.5 kw)

Main blade speed

3,000/ 4,000/ 5,000 r.p.m.

Scoring saw blade

j 120

Scoring saw blade bore

j20

Scoring blade motor power

1HP (0.75 kw)

Scoring blade speed

8,000 r.p.m.

Cutting width

1,300 mm

Cutting width adjustment

Manual

Main saw blade tilting adjustment

Manual (0°~45°)

Main saw height adjustment

Motorized

Scoring saw adjustment

Manual

Saw guard

Simple (overhead guard optional)

Dust collection system

120 mm/60 mm

N.W./G.W./MEAS.(machine)

620/720 kgs (2,110 x 1,130 x 1,120 mm)

N.W./G.W./MEAS.(sliding table)

89/97 kgs (3,300 x 430 x 220 mm)

N.W./G.W./MEAS.(overhead guard)

89/40 kgs (1,420 x 980 x 120 mm)

Ctn .Q’ty:

8/19 sets
