Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

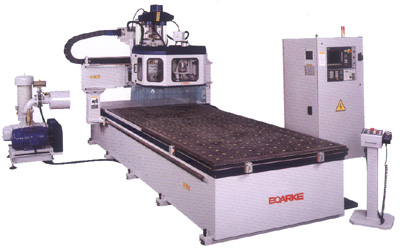

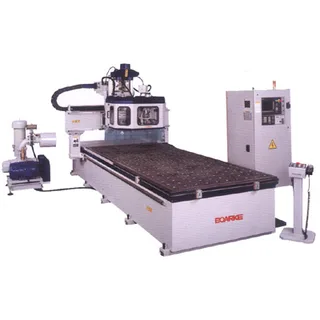

Machine Features: *One spindle ,one tool magazine + 7 vertical 2 horizontal line boring head (Optional). *Drum type auto. Tool change system. Tool magazine capacity 8 tools. Tool change time only 8 seconds. (12 tool

Machine Features:

*One spindle ,one tool magazine + 7 vertical 2 horizontal line boring head (Optional).

*Drum type auto. Tool change system. Tool magazine capacity 8 tools. Tool change time

only 8 seconds. (12 tool is optional)

*Three guide ways, one side driving structure, features heavy duty cutting.

*Vacuum table area can be divided into two vacuum zones. When one zone is machining,

the other zone can be fed material simultaneously. (optional)

*Full sheet of board can be processed directly, not needing prior sawing. This saves making moulds.

*Suitable for machining complex parts of various types and in small quantities.

*Typical applications: cabinet doors, solid wood doors, computer desks and panel type furniture, etc.

Table	Table size	1550x3650mm (5x12ft)
Max. working stroke	X axis	3850mm (12.63ft)
	Y axis	1850mm (6.07ft)
	Z axis	250mm (0.82ft)
	Spindle elevation	150mm (5.9")
	Work piece height	Max.200mm (7.87")
	Pneumatic boring head lifting	150mm (5.9")
Rapid speed	X , Y axis	60M/min (196.85ft/min)
Rapid speed	Z axis	20M/min (65.62ft/min)
Spindle	Spindle speed	1000-24000rpm
Main power	Spindle motor	11HP (8kw)x1 HSD
Main power	Vacuum pump	20HP (15kw)
Dimensions	L	4650mm(15.25ft)
	W	2200mm(7.22ft)
	H	2300mm(7.55ft)
