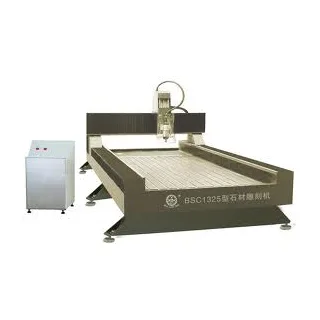

Máy CNC khắc đá chuyên dụng BSC-1325

CNC Stone Engraver/ Router
Class : Product List > Engraving Machine Series > Stone Engraver
Number : 00500024
Specification : 1360*3000mm
Model : BSC-1325
Price : 0
Time : 2010-05-31
Count : 183
Product Introduction
Features:
1.       Linear guide rail import from Taiwan, long-term using, high accuracy.
2.       Powerful driver, high speed.
3.       Good compatibility, type3/ Artcam/ Castmate are all compatible.
4.       Double nuts ball screw automatically eliminate interstice.
5.       Whole machine in steel-cast frame, be available to afford heavy mould board, nice stiffness, no deformation.
Technology Specification:

Model	C x 1325
X, Y axis travel (mm)	1300 x 2500
Table area (mm)	1360 x 3000
Max. Z axis travel (mm)	260
Max. Feeding height (mm)	260
Main spindle power (kw)	4 or 5
Spindle speed (rpm)	0-24000
Work mode	Stepper
