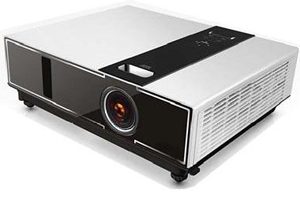

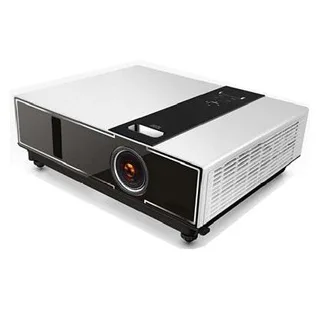

Máy chiếu Boxlight Seattle X26N

DISPLAY TECHNOLOGY

0.63” x 3 LCD with MLA

RESOLUTION

1024 x 768 XGA compression 1600 x 1200 UXGA

BRIGHTNESS

3500 lumens

CONTRAST RATIO

500:1

UNIFORMITY

85%

PROJECTIOM IMAGE (DIAGONAL)

40~300 inches

ZOOM/FOCUS

Manual Focus and Zoom Lens (Zoom Ratio 1.2:1)

COLORS

16.7 million

ASPECT RATIO

4:3  native
16:9 compatible

PROJECTION LENS

F=1.6~1.88  f=18.6~22.3 mm

THROW RATIO

1.45~1.73

THROW DISTANCE

1.2 – 10 m (3.3 ~ 25 feet)

PROJECTION LAMP

230W UHP

DIGITAL KEYSTONE CORRECTION

Vertical +/- 30˚ (Manual and Auto)

SCANNING RANGE

H 31~ 92 kHz ; V 48~120 Hz

COMPUTER COMPATIBILITY

Resolution: 640X480 (Expand), 1024X768 (Native), 1280X1024(Compressed), 1600X1200(Re-sampling)

VIDEO COMPATIBILILITY

NTSC / NTSC 4.43 / PAL (including PAL-M,N) / SECAM/ PAL-60
Component video: 480i/p, 525i/p, 576i/p, 625i/p, 720p, 1080i, 1125i 50/60 Hz

INPUT TERMINALS

RGB: Mini D-sub 15 pin x 1, DVI-I x 1, Audio: mini jack x 2
Composite Video: RCA x 1, S-Video x 1, Audio: RCA(L,R) x2
Component Video: RCA x 3, Audio: RCA(L,R) x 2

OUTPUT TERMINALS

RGB: Min D-sub 15 pin x 1, Audio: mini jack x 1

SERVICE PORT TERMINAL

Mini DIN 8-pin

MOUSE CONTROL PORT

USB type B x 1

CONTROL TERMINALS

RS-232C D-sub 9 pin x 1
RJ45 LAN x 1 (Optional)

AUDIO SPEAKER

8W x 1

POWER CONSUMPTION

310 W

DIMENSION (W x H x D)

325 x  96 x 260 mm (12.8” x 3.8” x 10.24”)

WEIGHT

3.2Kg (7.3 lbs)

POWER REQUIREMENTS

AC 100~240V, 50/60 Hz

FAN NOISE

33 dBA (ECO mode: 30 dBA)

ENHANCED FUNCTIONS

Auto search, Auto sync, Auto Ceiling, Auto Keystone and Auto Filter Alert
Instant off ( 10 seconds cooling time and turn off)
7 display modes (natural, cinema, user, green board, powerful, video, presentation)
Green power compliance- 4W power consumption at stand-by mode
Optional LAN (RJ45) monitoring utility for remote management

REGULATIONS

UL, cUL, FCC, CE, CB, CCC
