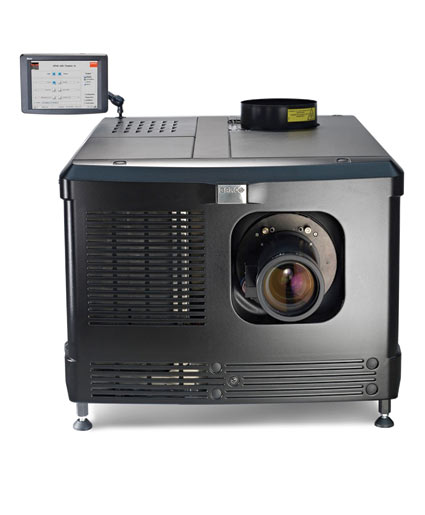

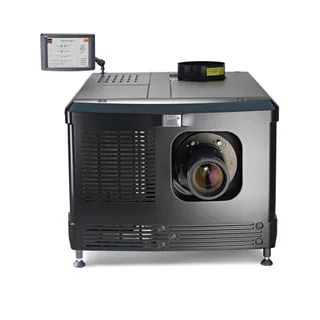

Máy chiếu Barco DP4K-32B

Digital MicroMirror Device™

3 x 1.38" DC4K dark metal devices

Native resolution

4,096 x 2,160 pixels

Housing

Hermetically sealed DMDs and optical assembly

Lamp

3kW - 7kW (Xenon lamp)

Light output

33,000 lumens (6.5 kW lamp)

Screen size

Up to 32m / 105 ft wide

Contrast ratio

2,000:1
(typical value when using a high contrast lens)

Digital Video Inputs

Slot for 2 x SMPTE 292M inputs or 4K Integrated Media Block
2 x DVI input
both selectable as single and dual link

Control I/O

Ethernet, 8x GPIO, Serial RS232

Prime lenses

1.13 - 1.66
1.27 - 1.86
1.45 - 2.13
1.63 - 2.53
1.95 - 3.26
2.53 - 4.98
equivalent throw ratios for 4K 1.38" DMD

Projector diagnostics

via PC touch panel
via Communicator control software
via SNMP agent

Power requirements

3W+N+PE 230/400V 16A 50-60Hz or 3W+PE 208V 27A 50-60Hz
30,000 BTU/hr (with 6.5kW - 7kW lamp)

Dimensions

604(H) x 754(W) x 1129(D) mm
23.78(H) x 29.69(W) x 44.45(D) inch
NB.: min. 5 cm of air inlet spacing required at the bottom of projector

Weight

141 kg (311 lbs)

Ambient temperature

35°C / 95°F Max.

Exhaust airflow

350 CFM

Standard Features

CLO (Constant Light Output)
Powerful SNMP agent
Motorized/memorized lens (focus, zoom & shift)
HDCP support
Full 2K triple flash 3D
Advanced patented DMD cooling

Options

4K Integrated Media Block
ACS-2048
3D add-ons
Touch panel
Pedestal
