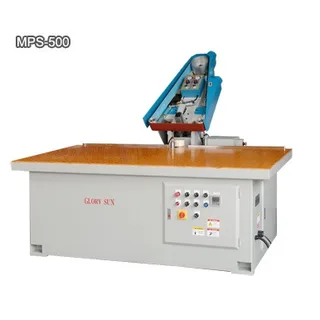

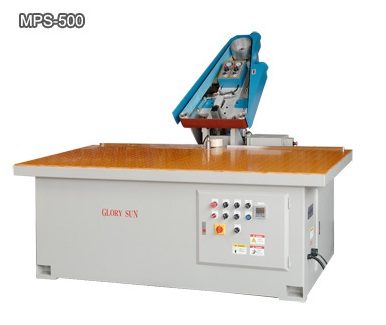

Máy chà nhám cong MPS-500S

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

ModelMPS-500Ssanding thickness10~100 mmsanding motor2HP (200~1200RPM)feed wheel motor1/2HPelevation motor60Wsanding belt tilt angle60Wsanding belt oscillating motor15Wvacuum pump motor50HZ 1.67HP 60HZ 2HPair cushion blower motor2HPcorner sanding

Model	MPS-500S
sanding thickness	10~100 mm
sanding motor	2HP (200~1200RPM)
feed wheel motor	1/2HP
elevation motor	60W
sanding belt tilt angle	60W
sanding belt oscillating motor	15W
vacuum pump motor	50HZ 1.67HP 60HZ 2HP
air cushion blower motor	2HP
corner sanding capacity	10R
flow CFM	50HZ 40 m³ /hr 60HZ 13 M/min
sanding belt speed (variable speed)	113~680 M/min
feed speed (variable speed)	50HZ 11M/min 60HZ 13M/min
process cycles	1~9 time
sanding belt dimension	40~100(W) x 2515(L) mm
sanding belt tilt angle	-15ﾟ ~ 90ﾟ
worktable dimension	1020(L) x 1020(W) mm
machine measurement	102 x 165 x 120 cm
packing measurement	107 x 170 x 137 cm
N.W/G.W	700/820 kgs
