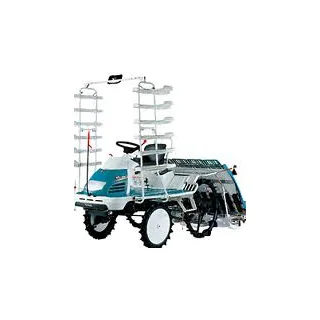

Máy cấy tự động NSPU 68C

Model

NSPU-68C

Drive type

4-wheel drive

Dimensions

Overall length ( mm{inch} )

3000{118.11}

Overall width ( mm{inch} )

2210{87.01}

Overall height ( mm{inch} )

2570{101.18}

Minimum ground clearance ( mm{inch} )

430{16.93}

Weight ( kg )

590

Engine

Model

GZ460-P-CHN

Type

Water-cooled, 4-cycle, 2-cylinder OHC gasoline engine

Total displacement ( L {cc} )

0.456 {456}

Outputlrevolutlon speed ( kW {PS} / rpm )

Output/revolution speed (kW{PS) / rpm)
8.5 {11.5} / 3600 MAX [12.5 {17.0}]

Applicable fuel

Unleaded gasoline for automobile

Fuel tank capacity ( L )

17

Starting system

Starter motor

Battery

12V, 24Ah [34A19L]

Fuel consumption ( kg/h㎡ )

3.6 to 8.5

Traveling portion

Steering system

Integral power steering

Wheel

Type

Front wheel

No-puncture tire

Rear wheel

Rubber lug wheel with thick rim

00 x width

Front wheel(mm{inch})

650{25.59} x 95{3.74}

00 x rim width

Rear wheel(mm{inch})

900{35.43} x 50{1.97}

Tread

Front wheel(mm{inch})

1165{45.87}

Rear wheel(mm{inch})

1200{47.24}

Shifting system

Hydrostatic transmission HST

Number of shifting positions

HST Main shift: Variable speeds for forward and reverse: No clutch
[sub shift: 2 positions]

Planting portion

Planting system

Rotary, forced planting

Number of planting rows

6

Distance between rows ( cm )

30

Hill space ( cm )

*12,14,16,18,21

Planting depth ( cm )

*2 - 5.3 [5 positions]

Number of hills per 3.3㎡

*90,80,70,60,50

Number of seedlings per hill

Crossfeed distance(mm{inch}/times)

*11{0.43}/26,14{0.55}/20,16{0.63}/18 [3 positions]

Vertical taking quantity(mm{inch})

*8{0.31} to 18{0.71}

Seedling condition

Seedling type

Seedling mat

Seedling height ( cm )

8 to 25

Number of leaves ( leaves )

2.0 to 4.5

Operation speed ( m/s )

0 to 1.62

Operation efficiency estimated value ( a/h {min/10a} )

Max. 61 {9.8}
