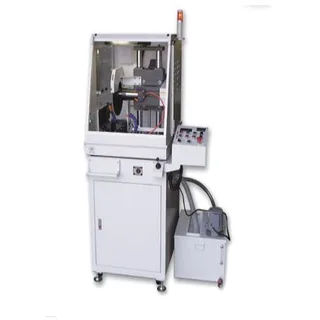

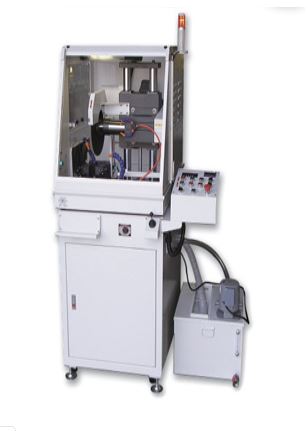

Máy Cắt Mẫu Top Tech ALTOCUT CF280-90A

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Máy căt mẫuModel :ALTOCUT CF280-90AHãng sản xuất : ToptechXuất xứ : Đài Loan Model NO.CF280-90A Work PieceDimensionMax Ø90mm25t x 100L Cut-off wheelMax Ø350 x Ø 32 Cutting MethodAuto return to the origin after cutting finished Feeding and retreat

Máy căt mẫu

Model :ALTOCUT CF280-90A

Hãng sản xuất : Toptech

Xuất xứ : Đài Loan

Model NO.				CF280-90A
Work Piece Dimension				Max Ø90mm 25t x 100L
Cut-off wheel				Max Ø350 x Ø 32
Cutting Method				Auto return to the origin after cutting finished
				Feeding and retreat speeds are adjustable
Feeding Method			Auto	Button control; return to the origin after auto cutting is finished
			Manual	Button control
Rotational Speed Of Cutting Main Shaft				2500rpm / 2100rpm (60/50HZ)
Cutting stroke				280mm
Cutting Clamps				Dual cutting clamp, Max opening: 100mm
Cutting Power				5HP-3 Ø
Cooling Device				1/4HP-3 Ø (auto recycle cooling)
Water Tank capacity				25gal
Machine Size				5500 x 1100 x1850 (H)mm
Machine type				Floor top
Power supply				AC22V-3Φ(380V，415V，440V)
Standard accessories				Tool: 1 set, Cutting wheels: 2pcs, Cooling oils: 4 liters
Main Shaft Feed Cutting				Main shaft oil hydraulic feed cutting
Optional Function CF001		Cutting Load Protection Function		1. If the cutting is overloaded, the machine will stop feeding for 2.5 seconds and then automatically restart the feeding. If the cutting is overloaded continually for three times, the automatic retracting warning light will flash. 2. If the electric current is overloaded, the machine will stop automatically. 3. Main motor’s maximum current load can be set up and current load’s status can be displayed when the main motor is cutting.
Optional Function CF002	Feeding And Collection System			“Maximum feeding length: 3000mm Maximum collection length: 1500mm roller type feeding rack”
	Feeding Length			“Display precision: 0.10mm Maximum positioning length 1500mmDisplay: LCD display”
