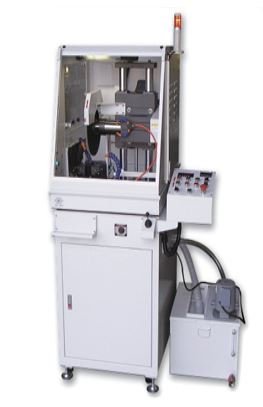

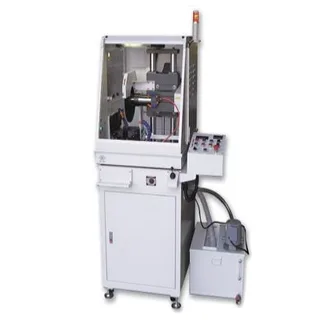

Máy Cắt Mẫu Top Tech ALTOCUT CF200-50A

Đặc điểm nổi bật

THÔNG TIN SẢN PHẨMMáy căt mẫuModel : ALTOCUT CF200-50AHãng sản xuất : ToptechXuất xứ : Đài LoanModel NO.CF200-50AWork PieceDimensionMax Ø50mm20t x 60LCut-off wheelMax Ø255 x Ø 31.75Cutting MethodAuto return to the origin after cutting finishedFeeding

THÔNG TIN SẢN PHẨM

Máy căt mẫu

Model : ALTOCUT CF200-50A

Hãng sản xuất : Toptech

Xuất xứ : Đài Loan

Model NO.			CF200-50A
Work Piece Dimension			Max Ø50mm 20t x 60L
Cut-off wheel			Max Ø255 x Ø 31.75
Cutting Method			Auto return to the origin after cutting finished
			Feeding and retreat speeds are adjustable
Feeding Method		Auto	Button control; return to the origin after auto cutting is finished
		Manual	Button control
Rotational Speed Of Cutting Main Shaft			3000rpm / 2500rpm (60/50HZ)
Cutting stroke			200mm
Cutting Clamps			Dual cutting clamp, Max opening: 60mm
Cutting Power			2HP-3 Ø
Cooling Device			1/8HP-3 Ø (auto recycle cooling)
Water Tank capacity			12gal
Machine Size			5500 x 1050 x 1770 (H)mm
Machine type			Floor top
Power supply			AC22V-3Φ(380V，415V，440V)
Standard accessories			Tool: 1 set, Cutting wheels: 2pcs, Cooling oils: 4 liters
Main Shaft Feed Cutting			Main shaft oil hydraulic feed cutting
Optional Function CF001		Cutting Load Protection Function	1. If the cutting is overloaded, the machine will stop feeding for 2.5 seconds and then automatically restart the feeding. If the cutting is overloaded continually for three times, the automatic retracting warning light will flash. 2. If the electric current is overloaded, the machine will stop automatically. 3. Main motor’s maximum current load can be set up and current load’s status can be displayed when the main motor is cutting.
Optional Function CF002	Feeding And Collection System		“Maximum feeding length: 3000mm Maximum collection length: 1500mm roller type feeding rack”
	Feeding Length		“Display precision: 0.10mm Maximum positioning length 1500mmDisplay: LCD display”
