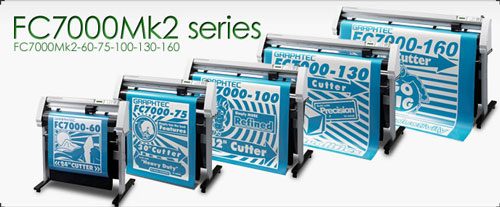

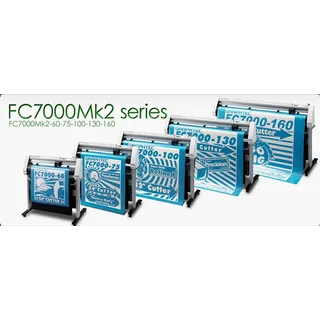

Máy cắt decal Graphtec FC7000Mk2 series

Model

FC7000 MK2-60

FC7000 MK2-75

 FC7000 MK2-100

FC7000 MK2-130

FC7000 MK2-160

CPU

32-Bit

Configuration

Digital Servo Friction feed with McroGritroll^TM drive

Max. cut area (expanded mode)

610 mm x 50m
(24 in x 164 ft )

762 mm x 50m
(30 in x 164 ft )

1067 mm x 50m
(42 in x 164 ft )

1372 mm x 50m
(54 in x 146 ft )

1626 mm x 50m
(64 in x 146 ft )

Guaranteed precision cutting area

590 mm x 15m
(23.2 in x 50 ft )

742 mm x 15m
(29.2 in x 50 ft )

1047 mm x 15m
(41.2 in x 50 ft )

1352 mm x 15m
(53.2 in x 50 ft )

1606 mm x 15m
(63.2 in x 50 ft )

Mountable media

Max. width

770 mm (30.3 in)

920 mm (36.2 in)

1224 mm (48.1 in)

1529 mm (60.1 in)

1834 mm (72.2 in)

Min. width

50 mm (2 in)

Max. diameter

200 mm

Max. weight

12 kg (26 lbs)

12 kg (26 lbs)

16 kg (35 lbs)

20 kg (44 lbs)

24 kg (53 lbs)

Max. cross cut area

730mm (28.7 in)

901mm (35.5 in)

1206mm (47.5 in)

1511mm (59.5 in)

1765mm (69.5 in)

Max. cutting speed (Axial)

1485 mm / sec (58.5 in/s) at a 45º angle

Max. axial acceleration

4.0 G (39.2 m/s2)

Cutting pressure

20 g to 600 g (0.196 N to 5.88 N) in 48 steps

Min. character size ^*1

3 mm (0.125 in)  alphanumeric Helvetica med. Font

Mechanical resolution

0.005 mm (0.0002 in)

Programmable resolution

GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm , HP-GL^TM : 0.025 mm

Repeatability ^*2

Max. 0.1 mm / 2 m (0.0039 in / 80in)

Tools

Accepts (1) cutting blade, (1) plotting pen, and (1) pouncing tool; Second penholder (optional)

Blade types

Supersteel (0.9 mm or 1.5 mm), Sapphire(1.5 mm)

Pen types

Water-based fiber-tip, oil-based ballpoint, and disposable ink pens

Pouncing tool type

Requires optional pouncing tool : (PPA33-TP12, 1.2-mm pin diameter)

Media types

Self-adhesive vinyl film, diamond grade, fluorescent film, reflective film, Amberlith^TM , Rubylith^TM , window film,
high-intensity reflective film^*3 , paint protection film, up to 0.25 mm tick ,  sandblast resist rubber up to 1 mm thick, etc.

Compatible paper for pouncing

Regular paper from 0.06 to 0.13 mm thick

Standard interfaces

RS-232C / USB2.0 (Full speed)

Buffer memory

2 MB

Command sets

GP-GL / HP-GL^{TM *4}

LCD Panel

LCD 20 x 4 - Supports 7 languages: with amber backlight

Power supply

100 to 240 VAC/50 to 60 Hz (Auto switching)

Power consumption

160 VA max.

Operating environment

Temperature: +10ºC to +35ºC

Humidity: 35 % to 75 % (non-condensing)

Guaranteed accuracy environment

Temperature: +16ºC to +32ºC

Humidity: 35 % to 70 % (non-condensing)

External dimensions  (W x D x H)
including stand ^*5

1110 x 715 x 1210 mm

1260 x 715 x 1210 mm

1560 x 715 x 1210 mm

1860 x 715 x 1210 mm

2120 x 715 x 1210 mm

43.7 x 47.6 x 28.1 in

49.6 x 47.6 x 28.1 in

61.4 x 47.6 x 28.1 in

73.2 x 47.6 x 28.1 in

83.5 x 47.6 x 28.1 in

Weight
including stand

36 kg (79 lbs)

39 kg (86 lbs)

43 kg (95 lbs)

51 kg (112 lbs)

59 kg (130 lbs)

Compatible OS

Windows 2000/Windows XP/Windows Vista ^*6 Macintosh OS 9.X to 10.X

Certifications

UL, cUL, CE marking, RoHS
