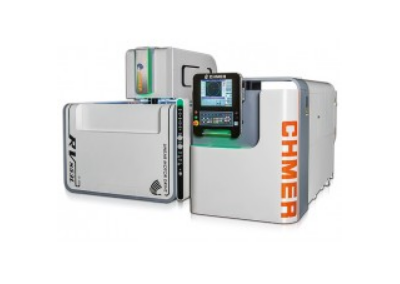

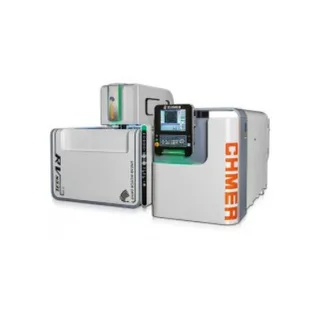

Máy cắt dây CHMER cao cấp RV853(5)L

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

MACHINE SEPCIFICATIONModelRV743LRV853(5)LRV1063(5)LRV1283(5)LAxis Travel (X Y) (mm)700x450800x5001000x6001200x800Axis Travel (U, Y, Z) (mm)150x150x300150x150x300 (150x150x500)150x150x300 (160x160x500)150x150x300 (160x160x500)Max size of workpiece (mm

MACHINE SEPCIFICATION
Model	RV743L	RV853(5)L		RV1063(5)L		RV1283(5)L
Axis Travel (X Y) (mm)	700x450	800x500		1000x600		1200x800
Axis Travel (U, Y, Z) (mm)	150x150x300	150x150x300 (150x150x500)		150x150x300 (160x160x500)		150x150x300 (160x160x500)
Max size of workpiece (mm)	1100x750x295	1200x800x295 (1200x800x495)		1240x900x295 (1240x900x495)		1440x1100x295 (1440x1100x495)
Max weight of workpiece (kg)	3000	3000		3000/5000		5000
XY Feed Rate (mm/min)	Max 1500	Max 1500		Max 1500		Max 1500
Axis Drive System	X, Y axis by Linear Motor; U, V, Z axis by AC Servo Motor
Wire Diameter Range (mm)	Ø 0.15~0.3 (Ø 0.25)	Ø 0.15~0.3 (Ø 0.25)		Ø 0.15~0.3 (Ø 0.25)		Ø 0.15~0.3 (Ø 0.25)
Max wire Feed Ratem (kg)	≤ 8kg	≤ 8kg		≤ 8kg		≤ 8kg
Wire Tension (gf)	300~2500	300~2500		300~2500		300~2500
Taper Angle (mm)	±14.5°/80(wide angle nozzle DA + DB= 15 mm)
Appearance Configuration (WxDxH)	3730x3000x2200	3840x3000x2200 (3865x3000x2750)		4300x3300x2250 (4300x3300x2780)		4650x4000x2250 (5050x4000x2780)
Machine Weight (kg)	7600	7800/8000		8000/8200		8800/9000
Working Fluid Supply Unit
Water tank capacity	1400L	1400L	2250L	2250L	2600L	2600L	3400L
Fiter Element	Paper	Paper	Paper	Paper	Paper	Paper	Paper
Ion Exchange resins	30L*2	30L*2	30L*2	30L*2	30L*2	30L*2	30L*2
Conductivity Control	Auto	Auto	Auto	Auto	Auto	Auto	Auto
Fluid temperature Control	Auto	Auto	Auto	Auto	Auto	Auto	Auto
Power Supply unit
Circuit System	Power Mos FET Transistor
Max output current	25A
Current Selection	15
Rest time	60
CNC Unit
Date input	Keyboard, RS-232, USB, LAN
Display	19-Inch Color
Control system	32bit, 1 CPU, X&Y Closed Loop
Control axis	X, Y, U, V, Z (5 axis), 6th axis optional
Setting Unit	0.001mm
Max command value	9999.999mm
Interpolation	Linear/Circular
Command System	ABX/INC
Machining Feed Control	Servo/Const Feed
Scaling	0.001-9999.999
Machining EDM Condition memory	1000-9999
Total AC power input	3 Phase 2205%/20KVA

Standard / Option Accessories

Standard/Optional Accessories						● Standard○Option
ITEM	UNIT	QTY	RV743L	RV853L	RV855L	RV1063L	RV1065L	RV1283L	RV1285L
i8 Energy - Efficient Power Circuit		1 set	●	●	●	●	●	●	●
X, Y axis Linear Motor	CHMER	1 set	●	●	●	●	●	●	●
X, Y axis Incremental Linear Scale	0.5um	1 set	●	●	●	●	●	●	●
AWT System	5th	1 set	●	●	●	●	●	●	●
Threading Assistant Device		1 set	●	●	●	●	●	●	●
Auto Sliding Door		1 set	●	●	●	●	●	●	●
Sink Door		1 set	○	○	○	○	○	○	○
Water Circulating Function		1 set	●	●	●	●	●	●	●
Intelligent Working Aid IWA		1 set	●	●	●	●	●	●	●
Inverter Chiller (20,000 BTU)		1 set	●	●	●	●	●	●	●
New Touch Screen Panel	19 inches	1 set	●	●	●	●	●	●	●
Network Transmission		1 set	●	●	●	●	●	●	●
DXF Transferring Function		1 set	●	●	●	●	●	●	●
I-Connected System		1 set	○	○	○	○	○	○	○
6th Axis of Rotary Table	CHMER	1 set	○	○	○	○	○	○	○
Jump Wire Feeder	3~30kg	1 set	○	○	○	○	○	○	○
2 in Transformer and AVR		1 set	○	○	○	○	○	○	○
Hight Speed Zinc Coating Wire	CHMER	1 set	○	○	○	○	○	○	○
CE Conformity (EC circuit + EMC Shied)		1 set	○	○	○	○	○	○	○
