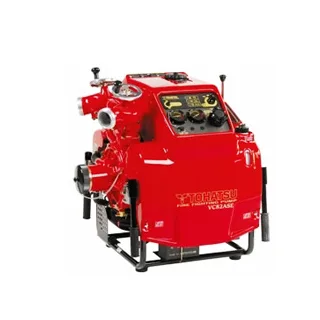

Máy bơm cứu hỏa Tohatsu V82ASE

Engine:

Type:

2-stroke, 2-cylinder, water cooled gasoline engine

Bore & Stroke:

78mm x 78mm (3.07 in. x 3.07 in.)

Piston displacement:

746cc (45.52 cu.in.)

Authorized output:

55PS/ 40.5 kW

Fuel tank capacity:

18 liters (4.76 US gals)

Fuel consumption:

20liters/h (5.29US gals/h)

Ignition:

Flywheel magneto (C.D.I. system)

Starting system:

Starter motor and automatic recoil system

Lubrication:

Separate fuel/oil supply system (Auto mixing)

Choke system:

Auto choke system

Spark plug:

NGK BP7HS-10

Light bulb:

12V-35W

Battery:

12V-16Ah/5h

Pump:

Type:

Single suction, single stage, high pressure turbine pump

Discharge port coupling:

JIS fire thread (B-9912), 2-1/2" male (Twin outlet)

Suction port coupling:

JIS fire thread (B-9912), 3-1/2" male

Priming:

Rotary-vane vacuum pump

Pump performance
(Suction height: 3m)

Over 2,050 liters (Over 542 US gals)/min. at 0.6 MPa

Over 1,800 liters (Over 476 US gals)/min. at 0.8 MPa

Over 1,500 liters (Over 396 US gals)/min. at 1.0 MPa

Dimensions:

Overall length:

Approx. 742mm (29.2 inch)

Overall width:

Approx. 682mm (26.8 inch)

Overall height:

Approx. 760mm (29.9 inch)

Mass:

94kg (207 lbs)

Max. suction height:

Approx. 9m (29.5 feet)
