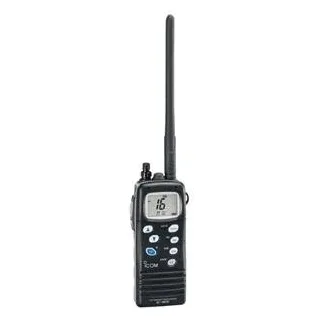

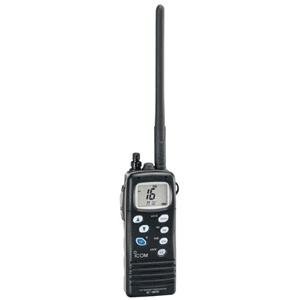

Máy bộ đàm hàng hải ICOM M1V

GENERAL

Frequency range

: TX 156.025 57.425 MHz
RX 156.025 63.275 MHz

Usable channels*

: All U.S.A., International and Canadian channels;
plus 10 weather channels (U.S.A. only)

Mode

: 16K0G3E (FM)

Power supply requirement

: 7.4 V DC (BP-215 only)

Current drain (at 7.4 V DC)

: Tx 1.5 A (at 5 W output)
Rx 200 mA (at AF max.)
20 mA (at Stand-by)

Operating temperature range

: -20°C to +60°C ; -4°F to +140°F

Antenna connector

: SMA (50)

Dimensions
(projections not included)

: 52.5(W) × 129(H) × 30(D) mm;
2 1/16(W) × 5 3/32(H) × 1 3/16(D) in

Weight (approx.; with BP-215)

: 280 g; 9.9 oz

TRANSMITTER

Output power*

: 5.0 W (Hi), 1 W (Low) and 0.5 W (Low2)

Modulation system

: Variable reactance frequency modulation

Max. Frequency deviation

: ±5 kHz

Audio harmonic distortion

: Less than 10% (at 60% mod.)

Spurious emissions

: IC-M1V Less than 65 dB
IC-M1EURO V 0.25 µW

RECEIVER

Intermediate frequencies

: 1st 21.7 MHz   2nd 450 kHz

Sensitivity

Squelch sensitivity(at threshold)

Adjacent channel selectivity

Spurious response

Intermodulation rejection ratio

Hum and noise ratio

: More than 40 dB

Audio output power

: 0.35 W typ. at 10% distortion with an 8 load
