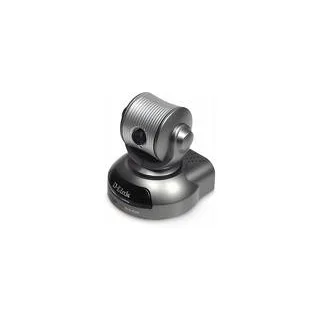

IP Camera D-Link DSC-5300

Technical Specifications

 Power Input

External Power Supply

12VDC 1.5A

 Remote Management

Configuration and system log can be accessed via WEB Browser and FTP application remotely

 Networking Protocol

TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS and DHCP

 Network Application

DDNS support with several popular DDNS servers

UPnP support

SMTP client

FTP client

FTP server

HTTP server

 Ethernet

10BaseT or 100BaseT Fast Ethernet

 Video Algorithm Supported

H.263+ (MPEG4 Short Header Mode)

  Features

Built-in Motion Detection

MPEG4 short header mode compression for streaming video

JPEG compression for still image

 Audio

24Kbps

Built-in omni-directional microphone

 Video Resolution

Up to 30fps at 160x120

Up to 30fps at 320x240

 Camera Specification

1/4 inch color CCD sensor

AGC/AWB

Electronic shutter: 1/60~1/15000 sec.

Fixed focus glass lens, F2.0, 1 LUX

 General I/O

1 Opto-isolated sensor input (max. 12VDC 50mA)

1 relay output (max.24VDC 1A, 125VAC 0.5A)

 Pan, Tilt, & Zoom Control

Auto pan and auto patrol mode with preconfigured stops

Pan: Range 270 degrees

Tilt: Range 90 degrees

4x Digital Zoom

 Ports

10/100 Mbps Fast Ethernet

Audio/Video output

External microphone input

External I/O

 Security

Administrator and user group protected

Password authentication

 Viewing System
 Requirement Protocol

ActiveX

 Operating System

Microsoft Windows® XP, 2000, Me or 98SE

 Browser

Internet Explorer 5.x or above

 LEDs

2 Status indicators.

(1) Power

(2) POST, connection, and heartbeat

 Dimensions

4.0" L x 4.1" W x 4.4" H

 Weight

12.2 oz. (0.751lb)
