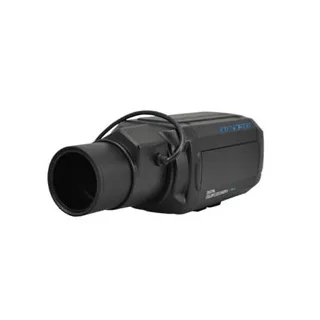

Hyundai HYC-WR68E
- Bảo hành
- 12 tháng
Tình trạng:
Còn hàng
Chỉ còn sản phẩm
Sản phẩm đang còn hàng — tạm thời chưa nhận đặt hàng.
Xem chi nhánh có hàng
Khu vực này chưa có chi nhánh còn hàng — chọn khu vực khác hoặc đặt hàng online.
Thông số kỹ thuật
| Bảo hành | 12 tháng |
|---|
Đặc điểm nổi bật
MODEL: Hyundai HYC-WR68E Image Device: 1/3" SONY SUPER HAD CCD II Scanning System: 2:1 Interlace Scanning Frequency: PAL : 15.625KHz(H), 50Hz(V) H.Resolution: 650TV Lines Total Pixels: PAL:795(H) x 596(V) NTSC:811(H) x 508(V) Effective Pixels: PAL
Nội dung chính
MODEL: Hyundai HYC-WR68E
Image Device: 1/3" SONY SUPER HAD CCD II
Scanning System: 2:1 Interlace
Scanning Frequency: PAL : 15.625KHz(H), 50Hz(V)
H.Resolution: 650TV Lines
Total Pixels: PAL:795(H) x 596(V) NTSC:811(H) x 508(V)
Effective Pixels: PAL:752(H) x 582(V)/44OK NTSC:768(H) x 494(V)/380K
S/N Ratio: More than 50dB (AGC OFF)
Min. Illumination: 0.3Lux (color)，0.1Lux (Black&White)，0.0003Lux (Frame Integration ON)
Sync System: Internal (scanning 2:1 internal)
Shutter speed: x128~1/50-1/120000s
Video Output: 1.0 Vpp Composite (75Ω)
Color/(Black&White): Double IR Filters(AGC Mode)
Backlight Compensation: WDR / Backlight compensation / OFF
OSD Menu: OSD Menu setting / Setting through RS485 Remote Controlling
Operation Temperature: 14℉~122℉ (-10℃~+50℃)
Storage Temperature: -4℉~140℉ (-20℃~+60℃)
Humidity: 80% ~ 90%
Power Consumption: DC12V(±20%), Max.310mA (IRED ON)
Flickerless/ Mirror/ AUTO Gain/ SLC(Strong Light Control): Off/On
Frame Integration: Max 128FLD ON/OFF
Privacy (4) / Motion detection (5)
Dimension(mm): 115x 70 x 62mm
Weight(g): Approx. 350g
Original: Korea
Image Device: 1/3" SONY SUPER HAD CCD II
Scanning System: 2:1 Interlace
Scanning Frequency: PAL : 15.625KHz(H), 50Hz(V)
H.Resolution: 650TV Lines
Total Pixels: PAL:795(H) x 596(V) NTSC:811(H) x 508(V)
Effective Pixels: PAL:752(H) x 582(V)/44OK NTSC:768(H) x 494(V)/380K
S/N Ratio: More than 50dB (AGC OFF)
Min. Illumination: 0.3Lux (color)，0.1Lux (Black&White)，0.0003Lux (Frame Integration ON)
Sync System: Internal (scanning 2:1 internal)
Shutter speed: x128~1/50-1/120000s
Video Output: 1.0 Vpp Composite (75Ω)
Color/(Black&White): Double IR Filters(AGC Mode)
Backlight Compensation: WDR / Backlight compensation / OFF
OSD Menu: OSD Menu setting / Setting through RS485 Remote Controlling
Operation Temperature: 14℉~122℉ (-10℃~+50℃)
Storage Temperature: -4℉~140℉ (-20℃~+60℃)
Humidity: 80% ~ 90%
Power Consumption: DC12V(±20%), Max.310mA (IRED ON)
Flickerless/ Mirror/ AUTO Gain/ SLC(Strong Light Control): Off/On
Frame Integration: Max 128FLD ON/OFF
Privacy (4) / Motion detection (5)
Dimension(mm): 115x 70 x 62mm
Weight(g): Approx. 350g
Original: Korea
