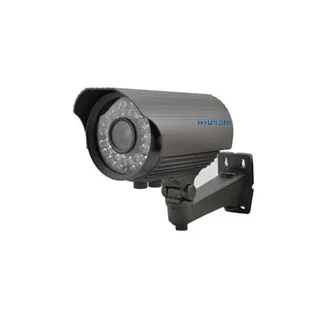

Hyundai HYC-9152Q

MODEL: Hyundai HYC-9152Q

Image Device: 1/3" SONY SUPER HAD CCD II

Scanning System: 2:1 Interlace

Scanning Frequency: NTSC : 15.734KHz(H), 59.94Hz(V) / PAL : 15.625KHz(H), 50Hz(V)

H.Resolution: 520TV Lines

Total Pixels: NTSC : 811(H) x 508(V) / PAL : 795(H) x 596(V)

Effective Pixels: NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V)

S/N Ratio: More than 48dB (AGC OFF)

Min. Illumination: 0.1Lux(COLOR),0.01Lux(Black&White),0.00Lux(IR ON)

Sync System: Internal

Shutter speed: 1/50(1/60)-1/100000(s)

Video Output: 1.0 Vpp Composite (75Ω)

Index Proof(IP): IP66

Electronic Shutter: NTSC : 1/60~1/100,000sec / PAL : 1/50~1/100,000sec

Infared Luminary: 36 units IR LED Φ8 /Double array, Max. 35M IR Distance

Operation Temperature: 14℉~122℉ (-10℃~+50℃)

Storage Temperature: -4℉~140℉ (-20℃~+60℃)

Humidity: Less than 80%

Power Consumption: DC12V(±10%), Max.310mA (IRED ON)

CAMERA TITLE: Off/On

LENS: DC / Video / Manual

EXPOSURE: Shutter / Brightness / AGC / DWDR

Dimension(mm): 248x 95 x 190mm

Weight(g): Approx. 918g

Original: Thailand
