Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

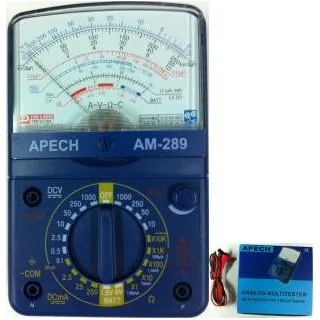

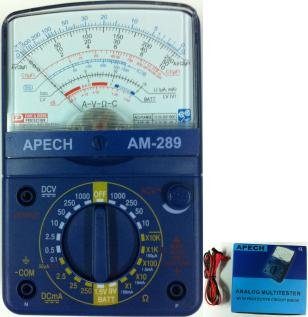

1. INTRODUCTION This Multi-meter is an accurate, battery operated, easy – safe operate handheld instrument.The high sensitivities of 20,000 Ohm/V DC & 9,000 Ohm/V AC and good quality meter movement offers accurate, reliable measurements of DC and AC

1. INTRODUCTION
This Multi-meter is an accurate, battery operated, easy – safe operate handheld instrument.The high sensitivities of 20,000 Ohm/V DC & 9,000 Ohm/V AC and good quality meter movement offers accurate, reliable measurements of DC and AC Voltage, DC Current, Resistance and DioDE, LED, Transistor, Continuity and Capacitance test on over 90 ARC mirrored scale. It’s provide with the pefect overload protection via the oxide varactor, Fuse & Diodes. It is an ideal instrument for applications in the fields of laboratory, school, workshop, hobby and home etc.
2. SPECIFICATIONS
Safety Category: IEC61010-1, CAT II 1000V and Pollution Degree 2.
Common Environment: 23ºC ± 5ºC, less than 75% RH.
Temperature ranges: 0 ºC to 40 ºC, 32ºF to 104 ºF for operating condition. -10 ºC to 50ºC, 14 ºF to 122 ºF for Storage condition.
Humidity Scope: operating condition less than 90% RH. Storage condition: less than 80% RH.
Size: 150(W)x 97(D)x 36(H) MM
Weight: 270g approx. (including batteries AA size 1.5V 2 pcs & 006P 9V 1pc)
Accessories: one set of Test Leads; Standby 0.5A/250V UL-Listed Fuse 1pc

Test Function	Range	Accuracy	Remarks
DC V	0-0.1-0.5-2.5-10-50-250V-1000V	±3% FSD ±4% FSD. For 1000V	Input Impendence: 20KΩ/V Input max: 1000V but at ranges 0.1/0.5V, 250V Max
AC V	0-10-50-250V-1000V	±4% FSD ±5% FSD. For 1000V	Input Impendence:9KΩ/V Input max: 1000V
DC mA	0-0.1-2.5-25-250 mA	±3% FSD	Drop Voltage: 250mV, overload protected by Fuses 0.5A/250V But no Fuse at 10A range. Max.testing time 15 seconds for 10A
Ω	X 1: 0.2~2KΩ Midscale at 20Ω X 10: 2~20KΩ Midscale at 200Ω X 100: 20~200KΩ Midscale at 2000Ω X 1K: 200~2MΩ Midscale at 20KΩ X 10K: 2K~20MΩ Midscale at 200KΩ	±4% of ARC of Scale Length	Power: 6F229V R6AA 1.5V x2pcs overload protected by the oxide varactor, input voltage limit: max 250V AC/DC
Capacitance (uF)	0.025-0.25-25uF(C2 at DC50uA), 2000uF(C1)	±3% FSD Approximate value	Use the Accessory Kit Use the R x 1K range
BATT Check	0~1.5V: GOOD-?-BAD 0~9V: GOOD-?-BAD	±5% of ARC of Scale Length	Load current: 270mA for 1.5V 25mA for 9V Overload protected by the oxide varactor input Voltage limit: Min.50V Max.250V AC/DC
Transistor check	HFE: 0-1000	Approximate Value	At Ω x 10 range Via test leader
Led diod check	IF, IR, LI, LV	Approximate Value	At Ω x 10 range
Decibel check	-22dB~+62 dB (0dB=1mW at 600Ω	Approximate Value	At ACV range
