Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

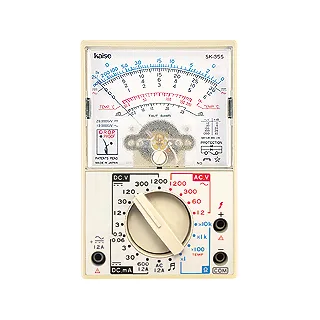

- Display: Analog meter - Meter protection: Overload protection by diode - Range selection: Manual-ranging - Power supply: 1.5V R6P (AA) and 9V 6F22 batteries x 1 each - Fuse: 0.75A/250V (5.2Ф x 20mm) x 1 - Dimensions & weight: 140(H) x 92(W) x 30(D

- Display: Analog meter
- Meter protection: Overload protection by diode
- Range selection: Manual-ranging
- Power supply: 1.5V R6P (AA) and 9V 6F22 batteries x 1 each
- Fuse: 0.75A/250V (5.2Ф x 20mm) x 1
- Dimensions & weight: 140(H) x 92(W) x 30(D)mm, 280g
- Accessories: 100-57 test lead, 1.5V R6P (AA) battery x 1.9V 6F22 battery x 1, F15 spare fuse (0.75A/250V) x 1 (inside the case), instruction manual
- Optional accessories: 810-02 temperature probe, 100-41 test lead kit, 100-62 test lead set, 976 carrying case, 793 coil-type contact pin.

Measurement items	Measurement range	Tolerance
DC V	0.3/3/12/30/120/300/1200V	±3% full scale
AC V	12/60/300/1200V	±4% full scale
DC current	60μ/3m/30m/600m/12A *1	±3% full scale
AC current	12A *1	±4% full scale
Resistance	2k/200k/2M/20MΩ	±3% f.s length
Temperature (ºC) *2	-30ºC to +200ºC	±3% f.s length
Continuity	Buzzer at approx. 100Ω or less	--------------
Decibel	-10 to +23/37/51/63dB	--------------
