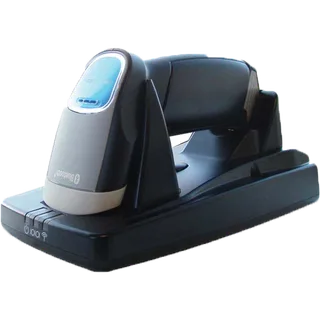

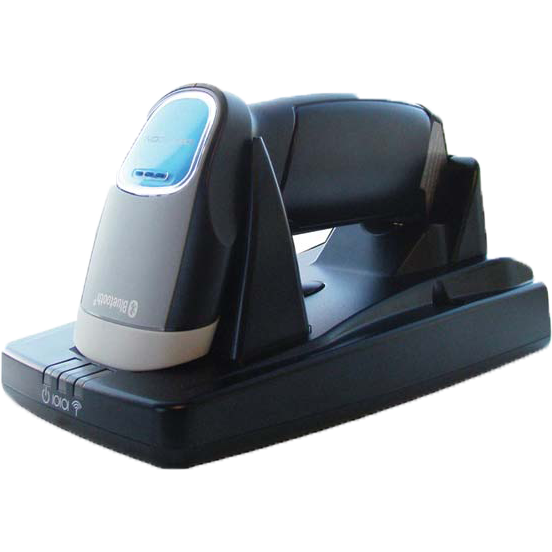

Đầu đọc mã vạch OPR3301

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Operating indicators Visual Large LED (red/green/blue) Non-visual Buzzer Operating keys Entry options 1 scan key Communication Bluetooth Ver. 1.2, SPP, output power class 2, range up to 10 m, 1 to 1 connection, master/slave mode, authentication

Operating indicators
Visual	Large LED (red/green/blue)
Non-visual	Buzzer
Operating keys
Entry options	1 scan key
Communication
Bluetooth	Ver. 1.2, SPP, output power class 2, range up to 10 m, 1 to 1 connection, master/slave mode, authentication and encryption
Power
Current consumption	85mA (typical use), max. 120mA
Rechargeable battery	Lithium-Ion 3.7V 1100mAh
Charging method	Separate cradle CRD3301 or CRD3101
Barcode scanner Optics
Light source	650 nm visible laser diode
Scan method	Bi-directional scanning
Scan rate	100 scans/sec
Trigger mode	Manual, auto-trigger
Reading pitch angle	-35 to 0°, 0 to +35°
Reading skew angle	-50 to -8°, +8 to +50°
Reading tilt angle	-20 to 0°, 0 to +20°
Curvature	R>15 mm (EAN8), R>20 mm (EAN13)
Min. resolution at PCS 0.9	0.127 mm / 5 mil
Min. PCS value	0.45
Depth of field	40 - 500 mm / 1.57 - 19.69 in (1.0 mm / 39 mil), 20 - 350 / 0.79 - 13.78 in (0.5 mm / 20 mil), 20 - 200 / 0.79 - 7.87 in (res 0.25 mm / 10 mil), 20 - 100 mm / 0.79 - 3.94 in (0.15 mm / 6 mil), 30 - 70 mm / 1.18 - 2.76 in (0.127 mm / 5 mil), at PCS 0.9, Code 39
Supported Symbologies
Barcode (1D)	JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code	Chinese Post, Korean Postal Authority code
2D code	Composite codes, MicroPDF417, PDF417
Durability
Temperature in operation	-5 to 50 °C / 23 to 122 °F
Temperature in storage	-20 to 60 °C / -4 to 140 °F
Humidity in operation	5 - 95% (non-condensing)
Humidity in storage	5 - 95% (non-condensing)
Ambient light immunity	Fluorescent 3,000 lx max, Direct sun 50,000 lx max
Drop test	1.5 m / 5 ft drop onto concrete surface
Vibration test	10 - 100 Hz with 2G for 1 hour
Protection rate	IP 42
Physical
Dimensions (w x h x d)	56 x 132 x 113 mm / 2.20 x 5.20 x 4.45 in
Weight body	Ca. 110 g / 3.9 oz (incl. battery)
Case	ABS, Black or White
Regulatory & Safety
Product compliance	CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2
